Food & Beverage
TITANFLEX
®
FEP Chemical and Food Suction Hose
FDA, USDA, 3-A

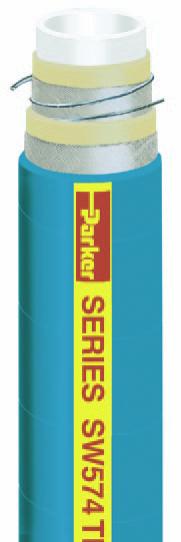

Series SW574
Series SW574 is a fexible, lightweight, premium quality suction and discharge hose
designed for use in high temperature, high pressure chemical and purity applications.
Te fuorinated ethylene propylene (FEP) tube is compatible with 99.5% of commonly
used chemicals and solvents, as well as food, pharmaceutical and sanitary materials. Te
tube also has an elevated temperature rating of 300°F (149°C), will not leach into and
contaminate the product being conveyed, and meets FDA, USDA and 3-A requirements.
Te special construction incorporates a dual wire helix that provides full suction capability,
superior force-to-bend and kink resistance and a path to conduct a static electrical charge
to ground. Te EPDM cover is resistant to abrasion, mild chemicals and ozone.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and
use information. Refer to the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals. Contact Parker for additional chemical
compatibility information.
Tube:
White fuorinated ethylene propylene (FEP)
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Blue EPDM; wrapped fnish
Temp. Range:
-40°F to +300°F (-40°C to +149°C)
Brand Method:
Red text on yellow stripe
Brand Example:
PARKER SERIES SW574 TITANFLEX
®
FEP CHEMICAL/FOOD QUALITY
HOSE XXX PSI MEETS FDA/3-A/USDA REQUIREMENTS (3-A LOGO)
MADE IN USA
Design Factor:
4:1
Industry Standards:
FDA, USDA, 3-A
Applications:
• Non-fatty and non-oily foods and liquids, potable water, sanitary
products
• Acids, chemicals, solvents
• In-plant and tank transfer, delivery, transport
Vacuum:
Full
Packaging:
Coils
WARNINGS!
It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on
temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
At operating temperatures of 125°F (52°C) and above, only permanently attached couplings should be installed. At any operating
temperature, couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum
rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use with internally expanded couplings. Refer to chemical hoses that incorporate a MXLPE tube.
!
(Continued on the following page)
