Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Food & Beverage
FEP Chemical and Food Suction Hose
FDA, USDA, 3-A

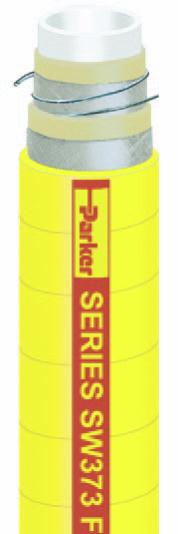

Series SW373
Series SW373 is a premium quality, high pressure, high temperature suction and discharge
hose designed to handle approximately 99.5% of commonly used acids, chemicals and
solvents, as well as food and sanitary materials. Te fuorinated ethylene propylene (FEP)
tube meets FDA, USDA and 3-A requirements, will not leach into and contaminate the
product being conveyed, and features a temperature rating to 300°F (149°C). Te hose
construction incorporates a dual wire helix that provides full suction capability, kink
resistance and a path to conduct a static electrical charge to ground. Te cover is resistant to
abrasion, mild chemicals and ozone.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and
use information. Refer to the Chemical Guide section of this catalog to determine
compatibility with specifc chemicals. Contact Parker for additional chemical
compatibility information.
Tube:
White fuorinated ethylene propylene (FEP)
Reinforcement:
Multiple textile plies with dual wire helix
Cover:
Yellow EPDM; wrapped fnish
Temp. Range:
-40°F to +300°F (-40°C to +149°C)
Brand Method:
Yellow text on red stripe
Brand Example:
PARKER SERIES SW373 FEP HOSE MEETS FDA, 3-A & USDA
REQUIREMENTS XXX PSI WP MADE IN USA
Design Factor:
4:1
Industry Standards:
FDA, USDA, 3-A
Applications:
• Non-fatty and non-oily foods and liquids, potable water, sanitary
products
• Acids, chemicals, solvents
• In-plant and tank transfer, delivery, transport
Vacuum:
Full
Packaging:
Coils
WARNINGS!
It is the responsibility of the user to determine if the hose is suitable for the application. Most chemical resistance guides are based on
temperatures of 70°F (21°C). Elevated temperatures can change the chemical resistance ratings. Many chemicals will become more
aggressive as temperatures increase, reducing the ability of hose compounds to withstand them. Contact Parker for chemical compatibility
data at elevated temperatures. If no data exists, users are required to perform compatibility testing at the desired temperature.
At operating temperatures of 125°F (52°C) and above, only permanently attached couplings should be installed. At any operating
temperature, couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum
rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Do not use with internally expanded couplings. Refer to chemical hoses that incorporate a MXLPE tube.
!
(Continued on the following page)
