801 Multipurpose

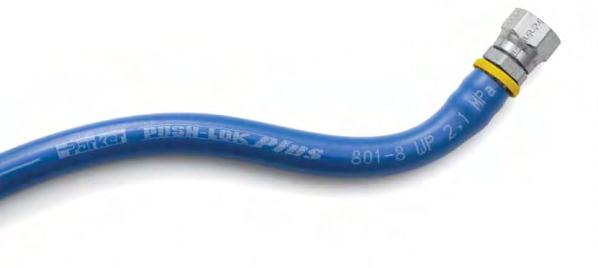

Parker’s Push-Lok Plus multipurpose hose line features the widest fuid compatibility,
application range and size range in the industry. It also incorporates the highest
working pressure in all sizes, making it the most versatile general-purpose hose
available. The Push-Lok system is easy to use. No clamps or special tools are required
during installation. And with Parker’s exclusive color-code system, you can inventory,
maintain and identify your hose needs easily and effciently. The industry’s most
complete line of low-pressure 801, 804 hose and fttings, Push-Lok offers the range
and versatility to meet all your instrumentation needs.
• Easy assembly and organization with Parker’s exclusive
color-code system
• Push-Lok assemblies can be made in seconds, saving
valuable time and cost
• The unique seal of Push-Lok ensures reliable, durable,
leak-free service
Push-lok
®
GRA
BLK
GRN
BLU
YEL
RED
Application:
Pneumatic,
petroleum base hydraulic fuid,
lubricating oils and antifreeze
solutions.
Diesel fuel - approved only when
coupled with HY Series fttings.
Inner Tube:
Synthetic rubber.
Reinforcement:
One fber braid.
Cover:
Synthetic rubber, MSHA
accepted
Temperature Range:
Air:
+158˚F (+70˚C)
Water:
+185˚F (+85˚C)
Oil:
-40˚F to 257˚F (-40˚C to
+125˚C).
Fittings
:
82 Series - pg. B-180.
HY Series - pg. B-126.
801 – Push-Lok Plus
®
Multipurpose
Available Cover Colors:
Part
Number Hose I.D. Hose O.D.
Working
Pressure
Minimum
Bend Radius Weight
Vacuum
Rating Parkrimp
Field
Attachable
inch mm inch mm psi MPa inch mm lbs/ft kg/m
inches
of Hg kPa HYSeries 82 Series
801-4 1/4 6,3 0.50 12,7 350 2,4 2-1/2 65 0.09 0,13 28 95
•
•
801-6 3/8 10 0.63 15,9 350 2,4 3 75 0.11 0,16 28 95
•
•
801-8 1/2 12,5 0.78 19,8 300 2,1 5 125 0.18 0,27 28 95
•
•
801-10 5/8 16 0.91 23,0 300 2,1 6 150 0.19 0,28 15 51
•
•
801-12 3/4 19 1.03 26,2 300 2,1 7 180 0.24 0,36 15 51
•
•
801-16 1 25 1.28 32,6 200 1,4 10 250 0.37 0,55 15 51
•
•
Hg
801 – Push-Lok Plus
®
Multipurpose
Available Cover Colors:
• Field Attachable Assembly Instructions are i
n Section B
with each Fittings Series.
• Push-Lok is not recommended for any fuel, refrigerant, or for use in air conditioners and heat pump applications.
• Push-Lok is not recommended for applications where extreme pulsation is encountered.
• See
Section B
for Assembly Instructions.
• Temperature Range of other media listed in
Section E.
Push-Lok Plus Hose:
801
Push-Lok
Catalog 4400 US
A-38
