CONSTRUCTION INJECTION MOLDING MINING OIL & GAS
Strong like spiral.
Bends like braided.
Compact Spiral Hose has half the
bend radius of its SAE counterpart
and a signifcantly smaller bend
radius than corresponding-size
Parker conventional spiral hose.
In addition to maximum fexibility
and excellent bendability, Parker
Compact Hoses offer smaller outer
diameters and abrasion resistant
cover choices. Such characteristics
make them the hoses of choice
for mobile hydraulic systems,
agricultural machinery, forestry
equipment, fork lifts, construction,
machinery, injection molding,
automotive, and the paper industry.
100R15 797TC-12
Catalog 4400 US Constant Working Pressure: 6000 PSI Hydraulic Hose: Compact Spiral Hose 797TC
A-23

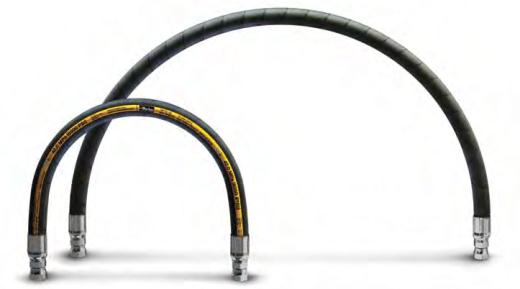

21"
SAE 100R15
Compact SpiralTM 797TC-12
has1/2 the
Bend Radius
10-1/2"
Compact SpiralTM
Bend Radius
Not only is it 1/2 the bend
radius, but it takes
1/3 less effort to bend.
A
Less-bulky inner tube and outer
wall construction result in up to
one-third smaller Compact Spiral
Hose O.D. area, enabling easier
routing, hose and space savings.
