Hose Assembly Workstations
Saw Table
Features
The Saw Table, specially designed for Parker 239 or 339 Hose Cut-Off Saw,
attaches directly to the HoseFab Table.
Part Number
Description
TH7-7
15” wide table set up for Parker 239 or 339 Cut-Off Saw
Table measurements:
Height - 18”
Width - 28”
Length - 14”
3/4 Reel Rack
Features
Compact in its design, the standard version will hold 3 reels of hose.
Optional 4th reel capacity designed with wall anchor mounts.
P
art Number
Description
TH7-8
Upright 3 hose reel rack
TH7-8-F
Optional extension with wall anchor for 4th reel
Rack measurements:
Height - 59” (82·1/2” with 4th reel option)
Width - 27·3/4”
Length - 27·1/2”

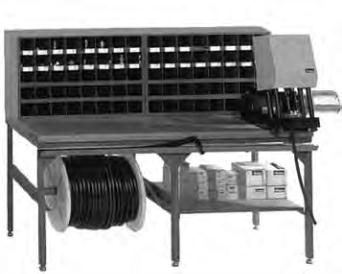

HoseFab Table
Features
Heavy duty constructed table for mounting Minikrimp, Karrykrimp, Karrykrimp 2,
or Parkrimp 1. HoseFab Table is available in 3 versions to meet your require-
ments. Options include two 40B-Cabinets or 72B-Cabinets for ftting storage.
Part Number
Description
TH7-5-R
6’ table with 2 hose reels
TH7-5-S
6’ table with 2 bottom shelves
TH7-5-C
6’ table with 1 hose reel and 1 bottom shelf
TH7-5-HT
Optional 6’ measured hose trough with adjustable hose stop
40B-Cabinet
40 openings - 4·1/2” x 4·1/2” x 12” in size
72B-Cabinet
72 openings - 4·1/2” x 4·1/2” x 12” in size
Table measurements:
Height - 31-3/4”
Width - 29”
Length - 72”
Rotary Reel Rack
Features
16 Hose reel capacity that fts in a compact area. Supplied with heavy duty
casters which allow for ease of turning, even when fully loaded. Optional
overhead crane available.
Part Number
Description
TH7-6
16 hose reel system, with rotating base
TH7-6-C
Optional overhead crane
Rack measurements:
Height - 104” (120” with optional overhead crane)
Width - 67”
Length - 67”
