D-27
Hose Products Division
Parker Hannifn Corporation
Wickliffe, Ohio
Accessories
Catalog 4400 US
Hose Guards - Protection Shields
Accessory Selection Guide – Protection Shields
(HP, HT, and HP-B)

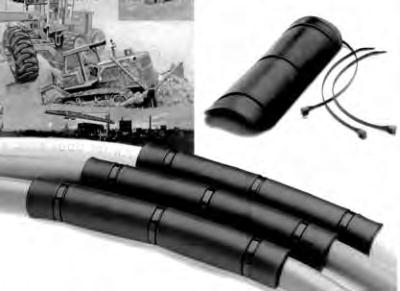

Prevent hose abrasion while extending your hose life. Parker Hose Protection Shields extend hose life by protecting the hose from
abrasion that occurs when hose rubs against other hose, metal or concrete. Parker hose shields are resistant to oil, lubricants, gasoline,
most solvents and can withstand ambient temperatures from -40° to +300° F. Easily installed and secured by cable ties without disconnect-
ing any hose lines. Use with hose from 1/4” to 2” I.D.
♦
Eliminate hose abrasion on concrete, metal or any rough surface.
♦
Guard against hose deterioration on mobile hydraulic equipment.
♦
Let Parker fll all your hydraulic and pneumatic hose product needs.
Hose Protector Shields are a fast and extremely cost effective way to isolate fuid lines from direct contact with other lines, components or
structural members. They’re available in 4-inch, 6-inch and 8-inch lengths and the width can be trimmed to satisfy a variety of situations.
These fexible protectors simply clamp around the hose and are securely held in place by nylon cable ties which are included. The cable
ties are recessed in molded grooves to protect them from abrasion.
You don’t need to disconnect a line to install a Parker Hose
Protector Shield the way you do with a continuous tubular sleeve. Just wait until the installation is up and running to see
exactly where contact needs to be prevented.
Parker Hose Protector Shields are available in bulk quantities and in convenient assortments in 4”, 6” and 8” sizes. Cable ties are included
with all protectors and are also available in bulk.
Hose Shields
Tie Wraps
HP-B-13X18-KIT
2 ea. HP-B-13 RFL
HT-12-KIT
30 ea. HT-12 Tie Wraps
2 ea. HP-B-15 RFL
HT-16-KIT
30 ea. HT-16 Tie Wraps
4 ea. HP-B-18 RFL
HT-22-KIT
15 ea. HT-22 Tie Wraps
20 Hose Protectors and 60 Tie Wraps for each size are in
point of purchase display box.
HP-B-13-RFL
10 ea. HP-B-13 Hose Protectors (4”).
30 ea. HT-12 Tie Wraps in a sealed plastic bag.
HP-B-15-RFL
10 ea. HP-B-15 Hose Protectors (6”).
30 ea. HT-16 Tie Wraps in a sealed plastic bag.
HP-B-18-RFL
5 ea. HP-B-18 Hose Protectors (8”).
15 ea. HT-22 Tie Wraps in a sealed plastic bag.
Contact your authorized Parker Hose Products Distributor for pricing and delivery information.
Note:
Parker Hose Protector Shield products are intended to prevent damage. They are not suitable as patches or repairs for lines which are
already damaged or worn beyond safe use standards.
Counter
Display
