D-23
Hose Products Division
Parker Hannifn Corporation
Wickliffe, Ohio
www.parkerhose.com
Accessories
Catalog 4400 US
B
A
C
D
E
Hose Guards - Firesleeve
Accessory Selection Guide – Firesleeve (FS-F)
Parker Firesleeve is a fame resistant sheath that protects the
hose from extreme temperature conditions. Firesleeve easily
slides over hoses and readily expands over ftting. It can be
assembled with Parker FSC or properly sized wormgear
clamp.
Construction:
Braided fberglass sleeve and an orange,
bonded and seamless silicone rubber cover.
Specifcations:
Conforms to SAE Aerospace Standard 1072A
Type 2A.
Temperature Range:
-54°C to +260°C (-65°F to +500°F).
Note:
The Firesleeve inside dimension (I.D.)
must exceed the outside diameter (O.D.)
of the hose and offer an allowance for
easy hose insertion. For example, 201-16
has a 1.23 in.O.D. FS-S-24, with an I.D. of
1.46 in., is the suggested Firesleeve.
Note:
Parker FSC Clamp fts all hoses up to
2 in. O.D.
Note:
Parker HC Clamps (wormgear) are listed
on page
D-26.
Note:
See
Page D-24 f
or Firesleeve assembly instructions.

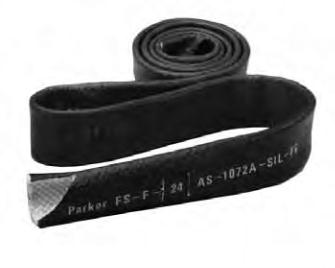

Firesleeve (FS-F)
FSC Clamp
Part Number: FSC
(One size fts all hoses up to 2 inch O.D.)
• UL 1441 Certifed
• VW1 Flame Test Certifed
• MSHA Certifed for use in underground mines
• SAE AS1072E
• GL - Germanischer Lloyd Certifed for 800
°
C for 30 minutes
• BS EN 373 Molten Splash Tested
• BS EN 388 Abrasion Tested
• BS EN ISO 6940 Flame Resistance Tested
• BS EN ISO 6530 Oil Resistance Tested
• BS 2576 Tensile Strength Tested
• DIN 54837 / 5510-2 Rail Vehicle Certifed for Resistance to
Combustibility
• DIN 5659-2 /5510-2 Rail Vehicle Certifed for Toxicity
Proudly offering the following certifcations and specifcations
Part
Number
Inside
Dia.
SS25UL
201, 206
221FR
225, 235
244
266
213
271
285
293
BXX
302
301LT
304
381
421WC
AX, MX
351TC, 351ST
422, 424
426, 431
436, 451TC
451ST, 471TC
471ST, 472TC
482TC, 482ST 273
601
604
636
646
701, 711
721, 721TC
721ST, 722LT
722TC, 772LT
772TC, 772ST
774
787TC, 797TC
731, 781
782TC
782ST
791TC
792LT
792TC
792ST
F42, P35
801
804
821
821FR
831
836
811
811HT
881 275 761
Twin
Line
FS-F-10 0.58 -4
-4
-3
-3,-4
-3
-4
FS-F-11 0.65 -5
-5
-4
-5
-4 -4
FS-F-12 0.71
-6
-5
-6
FS-F-14 0.84 -6,-8
-8
-6
-6
-6 -5,-6
-8
-6
FS-F-16 0.96
-10
-8
-8
-6
-4
FS-F-18 1.08 -10
-12
-8,-10
-10
-8
-8
-10
-8
FS-F-20 1.21 -12
-12
-12
-10 -10
-10
-8
-12
-10
-10
FS-F-24 1.46 -16
-16
-16
-12 -16
-12
-12 -10 6-6,6-8
FS-F-30 1.84 -24
-24
-16
-16
-16
-20 -16 8-8
FS-F-38 2.34 -32
-32 -20,-24
-24
-20,-24
-20
-24
-24 -20
FS-F-40 2.46
-24
“FS - F” Application - Hose Type/Size
