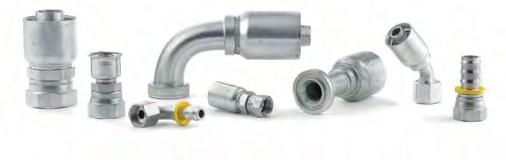

Crimpable fttings
Parker Parkrimp assemblies
consist of No-Skive hose and
fttings, permanently joined by any
one of our Parkrimp crimpers.
The teeth in Parker’s crimped
fttings bite down to the hose
wire for a metal-to-metal grip with
maximum integrity. Our one-piece
fttings can be combined with
many No-Skive hose types to
cover low-, medium- and high-
pressure applications, as well
as special application categories
that can also be used with
permanent crimped fttings.
We offer steel, brass, and stainless
steel fttings from 3/16" to 3",
with our steel fttings featuring a
corrosion-resistant plating that
exceeds SAE standards. Styles
include o-ring face seal, fare, male
pipe, metric designs and many
more. All are compatible with the
easy-to-use Parkrimp system of
crimping machines.
When combined with our
No-Skive hose, Parker Parkrimp
fttings provide factory-quality
hose assemblies quickly and
cost effectively.
MonoblokTM fttings
MonoblokTM fttings are
manufactured from a single
piece of steel. First introduced
in ultra-high-pressure hydraulic
applications, their lack of brazed or
soldered joints provides the
utmost in leak protection,
eliminating any potential leak
paths. Parker Monoblok fttings
are available in a wide variety of
end confgurations and ftting
series. These fttings also feature:
No-Skive, bite-the-wire, full-length
crimp, corrosion-resistant plating,
weather seal, and a low-profle
design.
Parker Fittings. The products of choice for
custom and standard applications.
MonoblokTM design, manufactured
from a single piece of steel with no
brazed or soldered joints, no
potential leak paths.
Wide
variety of end
confgurations.
Rugged, corrosion-
resistant plating.
Low-profle design
makes routing of hose
assemblies easy.
Teeth provide a
No-Skive, metal-to-
metal bite on braided
and spiral reinforced
hoses.
Gripping teeth defect to
ensure crimp integrity.
Full length crimp design.
