C27
C
Catalog 3501E Metric Pressure Sensor Valves
PWS-M -Plug-in Sensor-Electrical Output
Part Weight Output Output Output
No. grams function connection characteristics
PWS-M1012 0.08 Electrical 3 wires Contact OF
~ Ve = 3 A 0.5 mm2 12 to 230 V ~ /10 VA
long. 2 m 12 to 48 VCC/ 5W
PWS-B-Banjo Socket (with sensor locking clip)
B Part C5 J N N1 Y Weignt Tool
No. Grams Required
1/8 PWS-B188 6 8 18 28 16 0.04 Allen key 5 mm
1/4 PWS-B199 8 10 18 28 21 0.05 Allen key 8 mm
3/8 PWS-B133 10 11 22 32 28 0.07 Allen key 10 mm
1/2 PWS-B122 12 12 26 38 33 0.11 Allen key 12 mm
Only items priced in current price list are carried in stock. Dimensions shown may be changed at any time without prior notice.
32 2m
18 x 14
Level of Protection: IP40
Technical specification of model PWS-M : breaking pressure = 0.5 bar
connection : b
b
b BU
BK
BN
Black (BK)
Blue (BU)
Brown (BN)
N1
N
J
B
B
Y C5

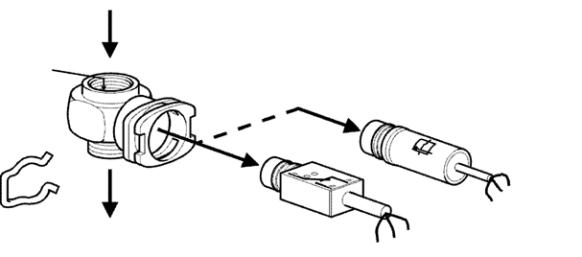

All black pressure sensors are a combination of two distinct parts:
a banjo socket + a plug-in sensor.
Banjo socket
Plug-in sensor
Allen screw
Locking clip
Black
(BK) Blue
(BU)
Brown
(BN)
Black
(BK)
Blue
(BU)
Brown
(BN)
New Part No. Old part no.
PWS-M1012 + PWS-B155 PTZ8M5
PWS-M1012 + PWS-B188 PTZ4-1/8
PWS-M1012 + PWS-B199 PTZ4-1/4
PWS-M1012 + PWS-B133 PTZ4-3/8
PWS-M1012 + PWS-B122 PTZ4-1/2
PWS-E101 + PWS-B155 PTE8M5
PWS-E101 + PWS-B188 PTE4-1/8
PWS-E101 + PWS-B199 PTE4-1/4
PWS-E101 + PWS-B133 PTE4-3/8
PWS-E101 + PWS-B122 PTE4-1/2
PWS-E111 + PWS-B155 PTE8M5C
PWS-E111 + PWS-B188 PTE4-1/8C
PWS-E111 + PWS-B199 PTE4-1/4C
PWS-E111 + PWS-B133 PTE4-3/8C
PWS-E111 + PWS-B122 PTE4-1/2C
