Superior kink and stretch resistance >>

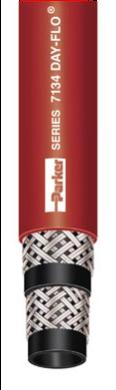

DAY-FLO®
Special Purpose Hose
Series 7134 (Red) / 7187 (Black)
A tough, versatile, multi-purpose hose designed to handle many jobs. The tube is com-
pounded to provide maximum oil resistance. DAY-FLO® hose may be used to transfer
air, water, oil and many chemicals in service up to 300 PSI. Tube exceeds RMA - Class
A Oil resistance. Braided reinforcement for maximum kink resistance. NOTE: Do not
use for hot, dry air applications.
4:1 Design factor
Tube Black Nitrile
Cover Black or Red Neoprene
Reinforcement One or multiple textile braids
Temperature Range -20°F to +212°F (-29°C to +100°C)
Branding PARKER SERIES 7134 DAY-FLO®
3/16 ID (4.8 MM)
XXX PSI MAX WP
MADE IN USA
Brand Description Ink Brand - White letter color
Compare to Gates 19B Plantmaster; Boston Perfection 300
LENGTHS: Random lengths on 500 ft. nominal reels, 725 ft. max, 400 ft. min. 3 pieces
max., with 50 ft. min. length.
COUPLINGS: For permanent crimp specifications, refer to CrimpSource. Other
available coupling options: Series 7611, 7615, 7692, 7628. For assembly guidelines
and additional coupling options, refer to NAHAD Industrial Hose Assembly
Guidelines.
Part No.
ID
(in.)
ID
(mm)
Reinf.
Braids
OD
(in.)
OD
(mm)
Approx.
Wt. per
100 Ft.
Min.
Bend
Radius
Max.
Rec.
WP
-191 ³/16 4.8 1 0.437 11.1 8 2.0 250
-251
-252
¼
¼
6.4
6.4
1
2
0.500
0.594
12.7
15.1
9
15
2.5
3.3
250
300
-311
-312
5/16
5/16
7.9
7.9
1
2
0.625
0.656
15.9
16.7
14
17
3.0
3.5
250
300
-381
-382
³/8
³/8
9.5
9.5
1
2
0.687
0.719
17.4
18.3
17
19
3.5
4.0
250
300
-501
-502
½
½
12.7
12.7
1
2
0.812
0.875
20.6
22.2
21
26
4.5
4.8
250
300
Applications
• Transfer of Air,
Oil and Water
• Hose Reels
7187
7134
27
HOSE
Air & Multi-Purpose
