Page 18 - 1606_Industrial Hose Catalog 5-12-06.indd

Lightweight yet durable >>
Applications
• Air Tools
• Water Hose

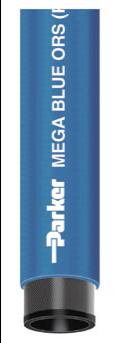

MEGA BLUE/MEGA RED
ORS Air &Water Hose
Series 7518 (Blue) / 7519 (Red)
Meets or exceeds RMA Grade 1, Class A Oil Resistance Standard. Specially blended
tube and cover compounds provide users with the weight and flexibility of thermo-
plastics combined with the feel and many physical properties of rubber. Excellent for
most applications where a more rugged, durable hose is required.
4:1 Design factor
Tube Modified PVC
Cover Rubber Modified Thermoplastic
Reinforcement Polyester Yarn
Temperature Range -20°F to +180°F (-29°C to +82°C)
Branding PARKER MEGA xxxx ORS -
(PRESSURE) PSI WP -
(ID)" - (ID)MM -
MADE IN USA
Brand Description Ink Brand - White letter color
Compare to Boston Ultraforce, Jason 4105
Part No.
ID
(in.)
ID
(mm)
Reinf.
Braid
OD
(in.)
OD
(mm)
Approx.
Wt. per
100 Ft.
Min.
Bend
Radius
Max.
Rec. WP
-250 ¼ 6.4 1 0.500 12.7 9 1.0 350
-375 ³/8 9.5 1 0.641 16.3 12 1.5 350
-500 ½ 12.7 1 0.781 19.8 17 2.5 300
-625 5/8 15.9 1 0.890 22.6 20 2.8 250
-750 ¾ 19.1 1 1.063 27.0 26 6.0 250
-1000 1 25.4 1 1.313 33.4 35 7.0 200
LENGTHS: 500 ft. reels. Reels are 90% one continuous length. If two pieces, lengths
will be in multiples of 50 ft.
COUPLINGS: For permanent crimp specifications, refer to CrimpSource. For
assembly guidelines and additional coupling options, refer to NAHAD Industrial Hose
Assembly Guidelines.
7518
7519
38
HOSE
Air & Multi-Purpose
Parker Hannifin Corporation
Industrial Hose Products
www.safehose.com
