23540 TELO AVENUE, TORRANCE, CA 90505 • PHONE: (310) 539-1822 • (323) 775-4001 • (800) 421-5196 • FAX: (310) 539-5826

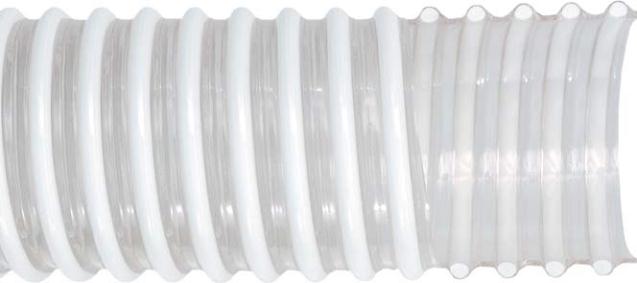

• APPEARANCE/CONSTRUCTION:
Clear PVC wall with white helix.
Corrugated wall, and smooth interior.
• BENEFITS:
– Lightweight and highly flexible.
• GENERAL APPLICATIONS:
– Air ducting and dust control.
– Transferring light abrasives.
– Also available in Flame Resistant
(UL 94VO & USMSHA 2G-26/1)
formulations on special orders.
• STANDARD LENGTHS:
1" thru 6" 100ft.
8" 50ft.
10" 25ft.
• APPEARANCE/CONSTRUCTION:
Black PVC wall with white helix.
Corrugated wall, smooth interior.
• BENEFITS:
– Lightweight and highly flexible.
– Also available in Clear.
• GENERAL APPLICATIONS:
– Lawn vacuums.
– Ducting light abrasives.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
4" thru 6" 100ft.
7" & 8" 50ft.
10" 25ft.
PVC BLACK LEAF AND
GRASS COLLECTION HOSE
SPIRALITE®191
PVC CLEAR CORRUGATED
LIGHT DUCT HOSE
190
1.25 1.52 1.79 2.35 2.90 3.45 4.50 5.54 6.54 8.57 10.61
1 2 2 2 3 3 4 5 5 7 13
.15 .20 .24 .39 .54 .72 1.02 1.26 1.51 2.21 2.75
NOMINAL SIZE inch 1" 11/4" 11/2" 2" 21/2" 3" 4" 5" 6" 8" 10"
inch
inch
lbs./ft.
APPROX. O.D.
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. WT.
4.52 5.54 6.54 7.55 8.57 10.61
4 5 5 5 7 13
1.02 1.26 1.3 1.74 2.19 2.73
NOMINAL SIZE inch 4" 5" 6" 7" 8" 10"
inch
inch
lbs./ft.
APPROX. O.D.
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
