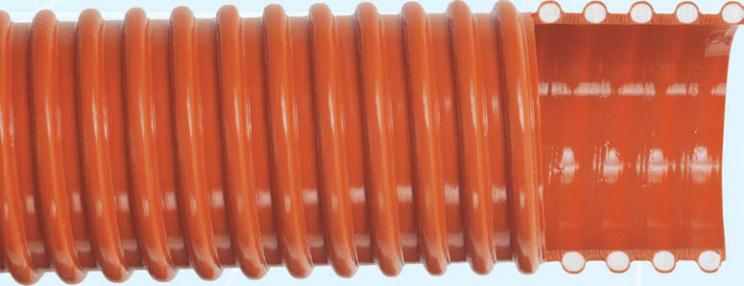

PVC OIL RESISTANT
CORRUGATED SUCTION HOSE

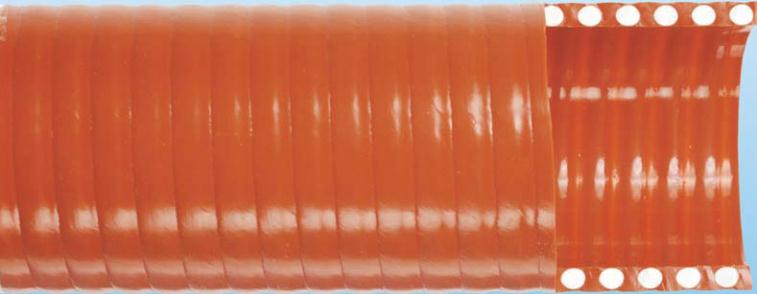

SPIRALITE® 160
PVC OIL RESISTANT
SUCTION HOSE
150
• APPEARANCE/CONSTRUCTION:
Orange PVC with white helix.
Smooth wall and interior.
• BENEFITS:
– Specially compounded from
oil-resistant PVC.
– Excellent alternative to more
expensive rubber hoses.
• GENERAL APPLICATIONS:
– General suction for light oils
and animal fats.
– Good for use in environments where
hose may be exposed to oils.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
1" thru 6" 100ft.
• APPEARANCE/CONSTRUCTION:
Orange PVC with white helix.
Corrugated wall, smooth interior.
• BENEFITS:
– Specially compounded from
oil-resistant PVC.
– Excellent alternative to more
expensive rubber hoses.
• GENERAL APPLICATIONS:
– General suction for light oils and
animal fats.
– Good for use in environments where
hose may be exposed to oils.
– Vapor recovery.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
1-1/2" thru 4" 100ft.
1.29 1.57 1.87 2.44 2.78 3.54 4.65 5.65 6.80
120 90 90 85 75 75 70 55 50
28 28 28 28 28 28 28 28 28
3 4 5 7 10 12 16 21 24
.31 .43 .57 .87 1.19 1.62 2.56 3.15 4.64
NOMINAL SIZE inch 1" 11/4" 11/2" 2" 21/2" 3" 4" 5" 6"
inch
psi
in/HG
inch
lbs./ft.
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
1.86 2.44 2.98 3.54 4.65
50 40 35 35 35
28 28 28 28 28
3 4 5 6 8
.39 .60 .81 1.10 1.73
NOMINAL SIZE inch 11/2" 2" 2 1/2" 3" 4"
inch
psi
in/HG
inch
lbs./ft.
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
