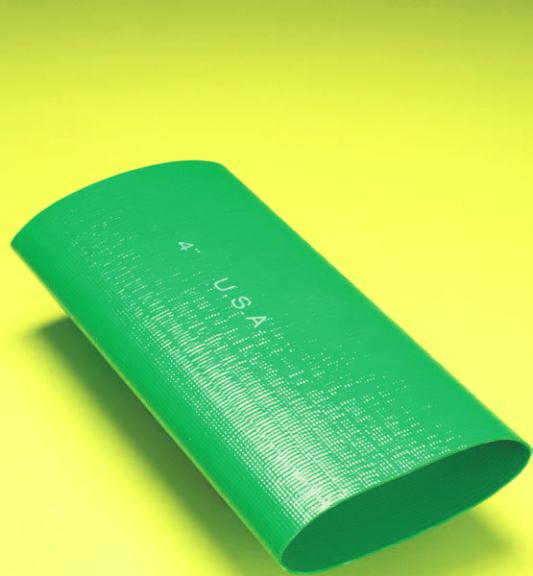

Code: SF-15
P.V.C.
GREEN
WATER
DISCHARGE HOSE
■
STND. LENGTH:
300 ft. per bale (Special order for
longer lengths)
■
TEMP. RANGE:
-5°F to 170°F
■
APPLICATIONS:
Thick, tough wall for Rentals,
Construction, Mines.
■
CONSTRUCTION: 2 Polyester Spirals plus
1-ply vertical yarns.
■
FLAME RESISTANT:
USMSHA IC-150/1
Special order only
■
CAUTION:
For liability purposes, if temperature
exceeds 110°F the working pressure will
go down. Please check with factory to
ensure sufficient safety factor.

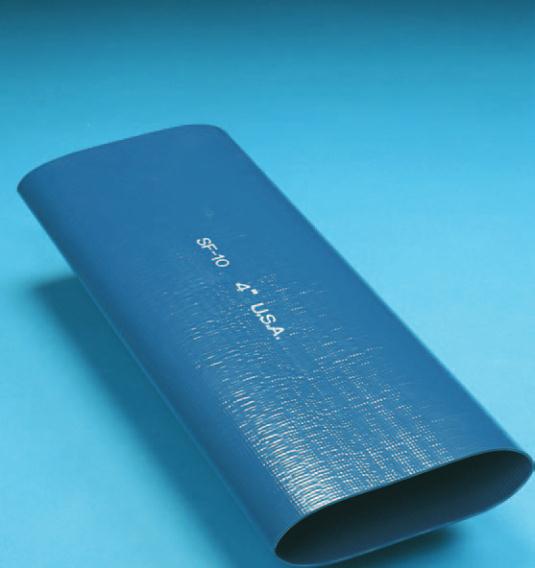

Code: SF-10
P.V.C.
BLUE
WATER
DISCHARGE HOSE
NOMINAL
APPROX.
MAX.W.P.
DESIGN
APPROX.
SIZE
I.D.
WALL
at 70°F psi
B.P. psi
Wt. 300ft
NOMINAL
APPROX. WT.
Max.W.P.
SIZE
I.D.
per 300 ft.
at 70°F psi
■
STND. LENGTH:
300 ft. per bale (Special order for
longer lengths)
■
TEMP. RANGE:
-5°F to 170°F
■
APPLICATIONS:
Mines, Construction, Irrigation, etc.
■
CONSTRUCTION: 3-Ply Polyester Yarns. Both tube
and cover are extruded simultaneously
to obtain maximum bonding.
■
CAUTION:
For liability purposes, if temperature
exceeds 110°F the working pressure will
go down. Please check with factory to
ensure sufficient safety factor.
1-1/2" 1.61" 57 lbs 80 psi
2" 2.09" 85 lbs 80 psi
3" 3.07" 115 lbs 80 psi
4" 4.13" 168 lbs 70 psi
6" 6.16" 296 lbs 60 psi
3/4" 0.79" 0.048" 140 psi
425
23 lbs
1" 1.04" 0.052" 110 psi
340
31 lbs
1-1/4" 1.30" 0.056"
80 psi
255
42 lbs
1-1/2" 1.61" 0.059"
80 psi
240
56 lbs
2" 2.09" 0.059"
80 psi
240
73 lbs
2-1/2" 2.56" 0.059"
65 psi
200
90 lbs
3" 3.07" 0.063"
80 psi
240 108 lbs
4" 4.13" 0.067"
70 psi
210 158 lbs
5" 5.07" 0.071"
40 psi
130 190 lbs
6" 6.16" 0.075"
60 psi
200 259 lbs
8" 8.15" 0.087"
35 psi
100 390 lbs
10" 10.20" 0.111"
35 psi
100 564 lbs
12" 12.13" 0.118"
35 psi
100 729 lbs
14" 14.14" 0.118"
30 psi
85 810 lbs
16" 16.14" 0.118"
30 psi
85 924 lbs
(Heavier Gauge than SF-10)
SF-10
SF-15
®
®
Nominal
APPROX.
Max.W.P.
Design Approx.
Size
I.D.
WALL at 70°F psi
B.P. psi
Wt. 300ft
10" 10.20" 0.126"
80 psi
230 650 lbs
12" 12.20" 0.134"
60 psi
230 830 lbs
Code: SF-10S
P.V.C.
BLUE
WATER
DISCHARGE HOSE
(Higher W.P. and Heavier Gauge)
