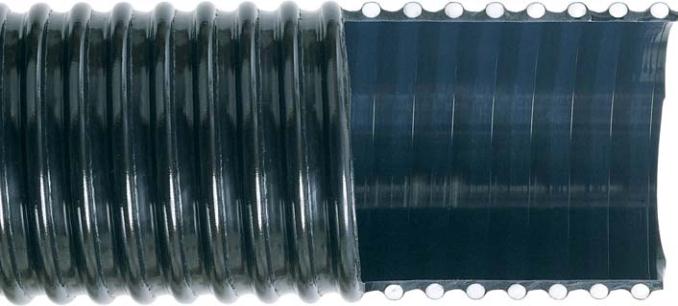

POLYURETHANE LINED
PVC SUCTION HOSE
SPIRALITE®U125
• APPEARANCE/CONSTRUCTION:
Black PVC cover with white helix.
Corrugated outside, smooth
polyurethane tube.
• BENEFITS:
– Compounded for outstanding
adhesion between wall and lining.
– Excellent abrasion resistance.
• GENERAL APPLICATIONS:
– Abrasive material handling.
– Shot blast recovery lines.
– Industrial vacuums.
– Pellet & grain transfer.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
2" thru 4" 100ft.
2.51 3.05 3.57 4.73
45 45 40 35
28 28 28 28
3 4 5 8
135 135 120 110
.68 .96 1.15 1.94
NOMINAL SIZE inch 2" 21/2" 3" 4"
inch
psi
in/HG
inch
psi
lbs./ft.
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. B.P.
AT 68°F
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.
1.89 2.45 3.61 4.73 7.13 9.29 11.49
100 100 100 75 70 50 35
280 280 280 200 180 150 105
28 28 28 28 28 28 28
4" 5" 7" 8" 12" 30" 44"
.36 .54 1.07 1.74 3.81 5.00 7.48
NOMINAL SIZE inch 2" 3" 11/2" 4" 6" 8" 10"
inch
psi
psi
in/HG
inch
lbs./ft.
1"
1.38
100
400
28
3"
.27
11/4"
1.66
100
400
28
3"
.33
APPROX. O.D.
RECOMMENDED
W.P. AT 68°F
APPROX. B.P.
AT 68°F
VACUUM RATING
AT 68°F
RECOM. MIN. BEND
RADIUS AT 68°F*
APPROX. WT.
* BEND RADIUS FOR CONTINUOUS SERVICE.

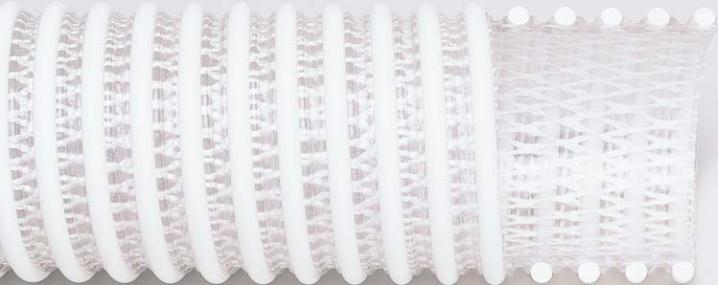

BRAIDED CLEAR PVC
CORRUGATED HOSE
®6200
• APPEARANCE/CONSTRUCTION:
Clear PVC with corrugated white helix
containing a braided reinforcement.
• BENEFITS:
– Clear wall allows easy inspection
of material flow.
– Smooth inside prevents
material blockage.
– Exposed helix, less resistance
to dragging.
– Braided wall handles higher pressures.
– Braided construction reduces
elongation during application.
• GENERAL APPLICATIONS:
– General suction for water & light
chemical solutions.
• TEMPERATURE RANGE:
-10°F to +130°F
• STANDARD LENGTHS:
1" thru 6" 100ft.
8" and 10" 20ft. and 40ft.
NEW!
