OETIKER
Twin Clamps
Product Group 108 & 158
Material
– 158 Stainless Steel, Material no. 1.4301 / UNS S30400
Installation
The open Twin Clamps are installed by wrapping them around parallel
lines after they have been positioned to the desired location,
preferably by pushing them along axially. The two sides of the clamp
are then depressed individually, or, if the two sides of the clamp have
different diameters, pressed together in a custom designed tool.
For details see the Technical Data Sheet.
Features
• Parallel alignment of twin hose lines, cables, pipes, rods,
tubing or rope connections
• Parallel alignment of unequal diameters and/or at different
centre distances.
• Specially deburred edges reduce the risk of damage to the
part being clamped
• Robust construction
• Fast and simple installation
OETIKER Twin Clamps are available in open and closed versions.
Both styles are strong alignment clamps designed to withstand the
ruggedness of typical industrial environments.
The closed clamp is mainly intended for industrial applications, i.e.
for the parallel alignment of welding hoses. The open clamp is suitable
for fastening pipes, cables and hoses i.e the automotive industry.
Both styles are suitable for use as pre-assembled clips.
Material
– 108 Zinc-plated Steel, Material no. 1.0338 / SAE 1008/1010
– Optional Stainless Steel, Material no. 1.4301 / UNS S30400
Size range
5.0 - 23.0 mm
Installation
The closed twin clamps are placed in an axial direction over the objects,
which are to be held parallel. They are then depressed slightly in
the middle using OETIKER pincers so that the clamp can no longer be
moved laterally.
For details see the Technical Data Sheet.
Open
Closed
Twin Clamps –
Open Version On request
Twin Clamps –
Closed Version
For detailed information, please request the Technical Data Sheet for this OETIKER
product group. Send your sample parts and all relevant information for your specific
application to OETIKER, and you will receive our recommendation for product type,
diameter, and method of installation.

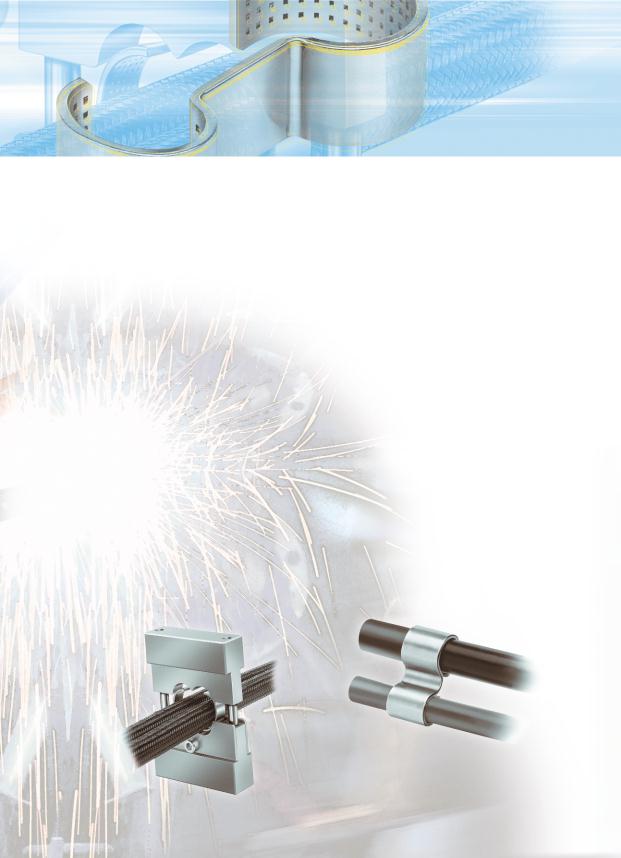

Application Example
Parallel installation of
hoses, tubes etc.
OETIKER closed twin clamps are
made as a complete unit, shaped
from one piece of cut tube
OETIKER Open Twin Clamps are made
from steel strip
