TWIN-KAM™ KAMLOK® CAM ARM KITS
with Guaranteed For Life (GFL™ ) Twin-Kam™ Arms
AUTOLOK™ CAM ARM KITS
Kit # Size
633ARK-SS07* 1 / 2 " & 3 / 4 "
633ARK-SS10 1"
633ARK-SS20 1-1 / 4 " – 2-1 / 2 "
633ARK-SS30 3", 4" & 5"
Kits for Kamlok® Couplers and Dust Caps
CAUTION: We do not recommend the use of Twin-Kam™ arms on
couplers not manufactured by OPW. Dimensional differences do
exist and proper performance cannot be assured.

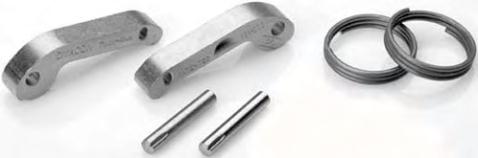

Parts Kit includes:
• 2 Cam Arms
• 2 Pins
• 2 Finger Rings
• Instructions
*Note: Finger Rings are not included with 1/2" and 3/4" Kit.
Kit # Size
733WARK-SS05 3/4"
733WARK-SS10 1"
733WARK-SS20 1-1/4" – 2-1/2"
733WARK-SS30 3" & 4"
Kit # Size
733ARK-SS07 1/2" & 3/4"
733ARK-SS10 1"
733ARK-SS20 1-1/4" – 2-1/2"
733ARK-SS30 3" & 4"
ORIGINAL DESIGN REPAIR KITS
Parts Kit includes:
• 2 Cam Arms
• 2 Finger Rings
• 2 Pins
• Instructions
Parts Kit includes:
• 1 Cam Arm
• 1 Finger Ring
• 1 Pin
• Instructions
Kit # Size
634CLK-1020 1-1/4" - 2-1/4"
634CLK-1070 3"- 5"
634 CLK CLIPLOK™ KITS Provides locking mechanism for standard units
Kit includes:
• 1 Cliplok™
• 2 Pins
• 2 Washers
• 3 Wavey Washers
• Instructions
GASKETS FOR AUTOLOK™/ KAMLOK® COUPLERS
*SolidTeflon® gasket recommended for use with viscous fluid only.
COMPOUND COMPOUND SYMBOL
BUNA-N
(Standard)
E.P.T.
BLUE STRIPES
NEOPRENE P
COMPOUND COMPOUND SYMBOL
WHITE BLUE MARKS
NEOPRENE
NONE
TEFLON®* T
RED STRIPES
VITON ®-A V
TEFLON® ENVELOPE BUNA-N
GASKET WHT/ORANGE
GREEN STRIPES
M
WHITE &YELLOW
WHITE & GREEN
N
COMPOUND COMPOUND SYMBOL
TEFLON® ENVELOPE VITON®-A
GASKET RED DOT
SILICON
TEFLON® ENCAP VITON®-A
GASKET
TEFLON® ENCAP SILICON
GASKET
