KAMLOK
®
SERIES
OPW Engineered Systems Kamlok
®
Quick Disconnects
are the industry-standard in cam and groove couplers for
safety and ease of use.
All OPW Kamloks
®
feature the exclusiveTwin-Kam
™
arm design to prevent accidental release, and
Spring-Ring
™
to ensure proper position of finger
rings for ease of operation.
Benefits
•
Long-Life Reliability
– Specially designed and
manufactured with the highest alloys and gasket
materials to endure the harshest environments.
•
Added Protection
– Exclusive features, such as
Twin-Kam
™
arms with special detent to secure
arms in position to prevent accidental uncoupling.
•
Ease-of-Use
– Cam and groove design means
smooth coupling and uncoupling while the patented
Spring-Ring
™
feature ensures that the finger rings do
not get trapped under the coupling arms.
•
Best Value
– Built to the highest quality standards with
special ease-of-use design features at the price point
of other standard cam and groove couplers makes
OPW Kamloks
®
the best overall value in the industry.
Features
•
Cam and Groove Design
– Provides for reliable,
smooth operation in 360° orientation.
•
Exclusive Twin-Kam
™
Arms
– Provides detent
position that helps prevent unintentional arm release
beyond 45°. Guaranteed For Life (GFL
™
)
– if an arm breaks, it is replaced for FREE.
•
Spring-Ring
™
Finger Rings
– Rings won’t get trapped
under the arms with this patented feature, so
opening/closing is quick and easy every time.
•
Available in stainless steel in a wide variety of sizes.
•
Arm Pins
– Rust-proof stainless steel.
22
IMPORTANT:
OPW products should be used in compliance with applicable federal, state, provincial, and local laws and regulations. Product selection should be
based on physical specifications and limitations and compatibility with the environment and materials to be handled. OPW MAKES NOWARRANTY OF FITNESS
FOR A PARTICULAR USE. All illustrations and specifications in this literature are based on the latest product information available at the time of publication.
OPW reserves the right to make changes at any time in prices, materials, specifications and models and to discontinue models without notice or obligation.
K
A M L O K
®
Q
U I C K
D
I S C O N N E C T S
Spring-Ring™ Finger Rings
prevent rings from getting
trapped under arms.
Detent position of Twin-
Kam™ arms help prevent
unintentional arm release.

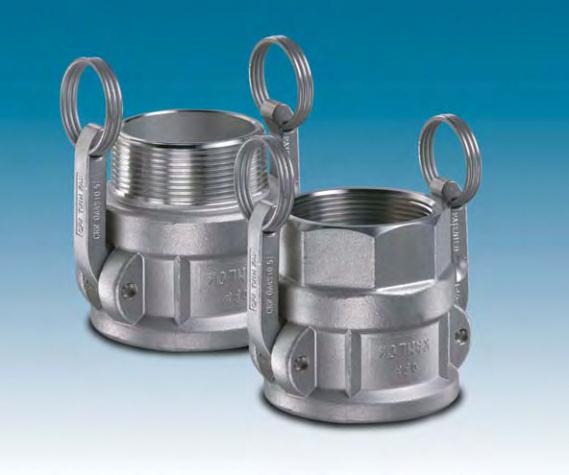

633 B Coupler - Male NPT
Prod. No.
Size
633B-SS05
1/2"
633B-SS07
3/4"
633B-SS10
1"
633B-SS12
1-1/4"
633B-SS15
1-1/2"
633B-SS20
2"
633B-SS25
2-1/2"
633B-SS30
3"
633B-SS40
4"
634 B Dust Cap
*
Prod. No.
Size
634B-SS05
1/2"
634B-SS07
3/4"
634B-SS10
1"
634B-SS12
1-1/4"
634B-SS15
1-1/2"
634B-SS20
2"
634B-SS25
2-1/2"
634B-SS30
3"
634B-SS40
4"
633 C Coupler - Hose Shank
Prod. No.
Size
633C-SS05
1/2"
633C-SS07
3/4"
633C-SS10
1"
633C-SS12
1-1/4"
633C-SS15
1-1/2"
633C-SS20
2"
633C-SS25
2-1/2"
633C-SS30
3"
633C-SS40
4"
633 D Coupler - Female NPT
Prod. No.
Size
633D-SS05
1/2"
633D-SS07
3/4"
633D-SS10
1"
633D-SS12
1-1/4"
633D-SS15
1-1/2"
633D-SS20
2"
633D-SS25
2-1/2"
633D-SS30
3"
633D-SS40
4"
See page 23 for Mating Adaptors
Ordering Specifications
*Dust caps and plugs
are NOT to be used in
pressure applications.
