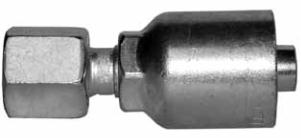

MALE JIC 37° FITTING - ONE PIECE BITE TYPE
MALE O-RING FACE SEAL FITTING - ONE PIECE BITE TYPE
FEMALE O-RING FACE SEAL FITTING - ONE PIECE BITE TYPE
Part #
Thread Size Hose ID A Overall
D Cut-Off E Nipple Hex Dia. 2 Price
D1MJ 103-0404
7/16-20
1/4
2.00
1.07
.17
.56
----
D1MJ 103-0606
9/16-18
3/8
2.16
1.17
.26
.69
----
D1MJ 103-0808
3/4-16
1/2
2.57
1.41
.38
.81
----
D1MJ 103-1212 1 1/16-12
3/4
2.94
1.75
.61
1.12
----
D1MJ 103-1616 1 5/16-12
1
3.25
1.90
.82
1.38
----
D1MJ 103-2020
1 5/8-12
1-1/4
3.89
2.16
1.05
1.75
----
Part #
Thread Size Hose ID A Overall
D Cut-Off E Nipple Hex Dia. 2 Price
D1MR 1J0-0404
9/16-18
1/4
1.78
.86
.17
.62
----
D1MR 1J0-0606 11/16-16
3/8
1.99
.99
.26
.75
----
D1MR 1J0-0808 13/16-16
1/2
2.30
1.13
.38
.88
----
D1MR 1J0-1212 1 3/16-12
3/4
2.63
1.44
.61
1.25
----
D1MR 1J0-1616 1 7/16-12
1
2.53
1.34
.61
1.50
----
Part #
Thread Size Hose ID A Overall D Cut-Off E Nipple Hex Dia. 1 Hex Dia. 2 Price
D1FR 1JC-0404 9/16-18
1/4
1.95
1.03
.17
.69
.56
----
D1FR 1JC-0606 11/16-16
3/8
2.23
1.24
.26
.81
.69
----
D1FR 1JC-0808 13/16-16
1/2
2.67
1.50
.38
.94
.88
----
D1FR 1JC-1212 1 3/16-12
3/4
2.91
1.72
.61
1.38
1.12
----
D1FR 1JC-1616 1 7/16-12
1
3.29
1.94
.81
1.62
1.38
----
