Garden Hose Fittings
•Temperature and Working Pressure Ranges
From +350F to +1000 F at 75 PSI maximum or
the recommended working pressure of the gar-
den hose. (Not to exceed 150 PSI.)
Note: All female connector ends should
have a rubber washer inserted prior to
usage.
FGH = Female Garden Hose threads
MGH = Male Garden Hose threads
Male garden hose threads are all 3/4” with an
outside diameter of 1.0625 and 11-1/2” threads
per inch.

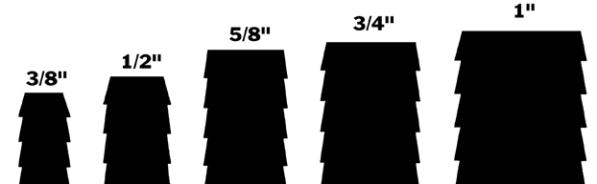

Actual Profile of Garden Hose Barbs
.415 .53
.645 .79 1.02
B
RASS
GARDEN HOSE BRASS FITTINGS

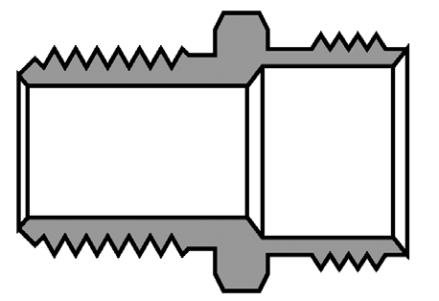

Male Garden Hose Profile
See page 250 for
Plastic Garden Hose Fittings
Dimension data can change without notice.
Please call us when dimensions are critical.
