TECHNICAL DATA
Fluid:
Compressed Air
Maximum Pressure:
300 psig (20 bar)
Operating temperature*:
-30° to 175°F (-34 to 80°C)
*Air supply must be dry enough to avoid ice formation at
temperatures below 35°F.
Typical flow with 150 psig (10 bar) inlet pressure, 90 psig
(6.3 bar) set pressure and 15 psig (1 bar) droop from set: 144
scfm (68 dm3/s).
LUBRICATORS
MATERIALS
L72M
Body: zinc
Bonnet: acetal
Valve: brass
Elastomers: nitrile
Bottom plug: acetal
L72M
Body: zinc
Transparent bowl: polycarbonate
Sight-feeding dome: transparent nylon
Elastomers: neoprene, nitrile & Geolast.
L73M & L74M
Body: aluminum
Metal bowl: aluminum
Liquid level indicator lens metal bowl:
transparent nylon
Sight-feed dome: transparent nylon
Elastomers: neoprene & nitrile.
• Quick release bayonet bowl.
• Flow sensor provides a nearly constant oil/air ratio over a wide range of flows.
• Highly visible, prismatic liquid level indicator lens on metal bowls.
• All round (360°) visibility of sight-feed dome for ease of drip rate setting.
• Micro-fog.
Part # Size Description

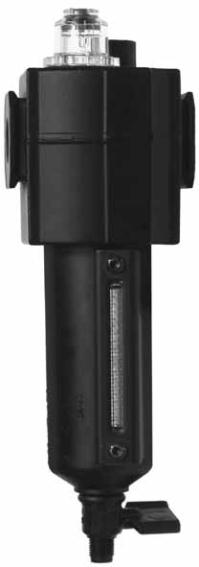

L72M 1/4" Lubricator ----
L73M 3/8" Lubricator ----
L74M 1/2" Lubricator ----
