266
C
LAMPS
FLJS C
LAMP
H
OSE
C
LAMPS
FLJS-Clamp

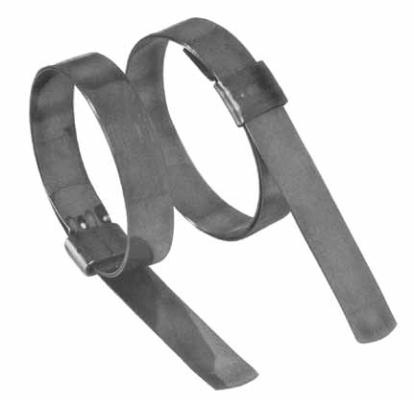

SMOOTH I.D. CLAMPS
FLJS
- Clamps are double wrapped clamps with a more smooth inside diameter, intended for your thermo-
plastic and other thinner wall hose clamping applications. The JS series clamps slide on the hose prior to
inserting the fitting.
Preformed JS
- Clamps are available in 5/8” and 3/4” widths, 1” I.D. to 8” I.D. in 1/4” increments.
The FLJS
- Clamp is intended to be applied with a KS001 tool or other comparable fold-up locking tool.
KA001
FOLD-UP ADAPTER
KS001
WIND-UP TOOL
5/8" (NOMINAL WIDTH)
Catalog Number Clamp I.D.
Inches
Band Width &
Thickness
FLJS-203
1"
5/8" x .030
----
FLJS-204
1-1/4"
5/8" x .030
----
FLJS-205
1-1/2"
5/8" x .030
----
FLJS-206
1-3/4"
5/8" x .030
----
FLJS-207
2"
5/8" x .030
----
FLJS-208
2-1/4"
5/8" x .030
----
FLJS-209
2-1/2"
5/8" x .030
----
3/4" (NOMINAL WIDTH)
FLJS-227
2"
3/4" x .030
----
FLJS-210
2-3/4"
3/4" x .030
----
FLJS-211
3"
3/4" x .030
----
FLJS-212
3-1/2"
3/4" x .030
----
FLJS-213
4"
3/4" x .030
----
FLJS-214
4-1/2"
3/4" x .030
----
FLJS-215
5"
3/4" x .030
----
FLJS-216
6"
3/4" x .030
----
FLJS-218
7"
3/4" x .030
----
FLJS-219
8"
3/4" x .030
----
STAINLESS
STEEL
:
----
:
----
