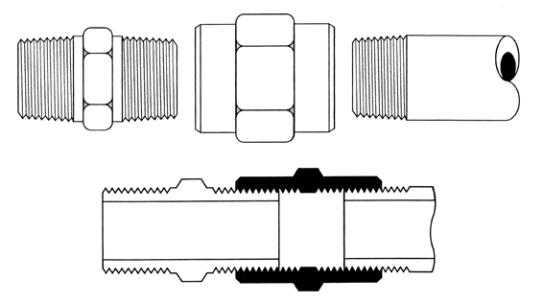

BRASS FITTINGS PIPE
Pipe
•Typical Application
Grease, fuels, LP and Natural gas (available on special
order), refrigeration, instrumentation and hydraulic
systems.
•Pressure
Operating pressure up to 1200 PSI.
•Vibration
Fair resistance.
•Temperature Range
-650F to +2500F (-530C to +1210C).
•Material
CA360 Brass for Barstock fittings.
CA377 Brass for forged fittings.
•Used With
Brass, bronze, copper, steel, aluminum and iron pipe.
• Tolerance
+/- .02 on all dimensions. Dimension Data can change
without notice. Please call us when dimensions are
critical.
•Conformance
Meets specifications and standards of ASA, ASME
and SAE.
• “L” at the end of a Part# means Light Pattern
- these fittings are completely interchangeable with
full pattern fittings, but have been modified in some
way. This modification is usually in the length of
the pipe threads. Used in plumbing and light indus-
trial applications.
•Assembly Instructions
1- Tighten approximately 2-1/2 turns past hand
tight.
2- Fittings with Everseal tighten two turns past
hand tight. Brittle materials require special cau-
tions.
• for larger sizes see bronze fittings on page 190
• see page 240 for plastic pipe fittings.

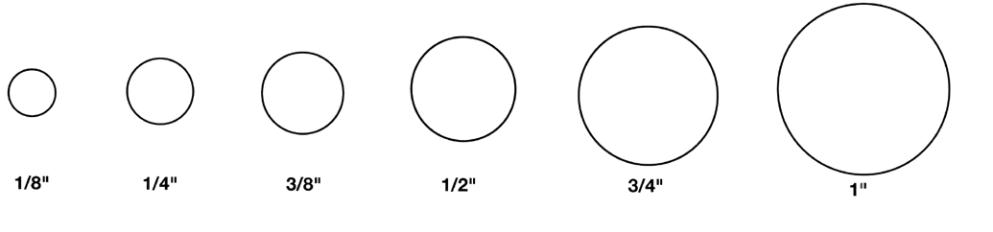

Actual outside diameters of pipe threads

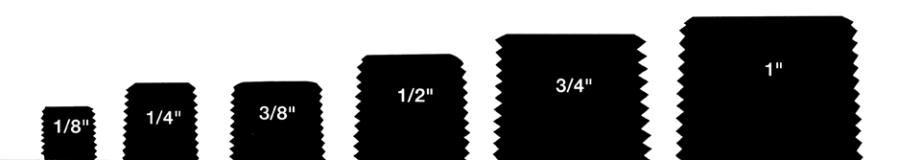

Actual Male Thread Profiles
eziSepiP 61/1 8/1 4/1 8/3 2/1 4/3 1
eziSdaerhT72-61/1 72-8/1 81-4/1 81-8/3 41-2/1 41-4/3 11-12/1
gnikroW
erusserP 0021 0021 0021 0021 0021 0001 0001
DOdaerhT4/1 8/3 2/1 8/5 4/3 1 4/1-1
