SOLID CHROME PLATED BRASS BALL
• Suitable for full range of liquids and gases
• Minimal pressure drop due to large full size ports
• Bottom loaded, pressure retaining stem
• Pressure rated at 600psi (42 bars) WOG (non-shock)
and 150 WSP (10.34 bars) saturated steam. Virgin TFE
stem packing seal, thrust washer and seats.
• Yellow vinyl insulator on heavy duty plated carbon
steel handles.
• Fast 1/4 turn open or close operation
• Low operating torque
• Flow can go both directions
ISO 9002 Manufacturer
FEATURES

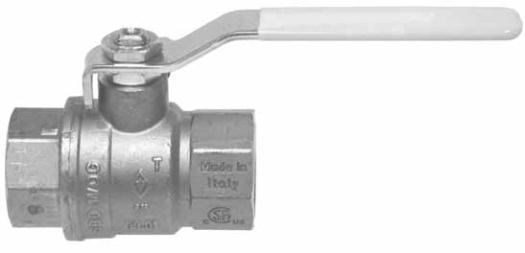

FULL PORT 600WOG FORGED BRASS BALL VALVE
600 PSI non-shock cold water, gas, oil
- 150 PSI saturated steam
• Adjustable stem packing gland
• Maximum operating temerature: 248
0
F (120
0
C)
at 600 PSI
• Minimum operating temperature: -20
0
F (-40
0
C)
• Each valve individually tested
• Forged Brass - for more strength
• Threaded ends to ANSI B1.20.1
• Hard chromium plated solid ball
• Bottom entry, blow-out proof stem
• Deeper threads - for better connections
Female x Female
Made in
Italy
C
CH
B
E
A
G
DN
Part#
Size
Dimension Inches
G DN A B C E
CH Box Case
943-200
1/4" .31 1.96 1.57 3.43 .43 .74 24 96
----
943-201
3/8" .39 1.96 1.57 3.43 .43 .86 24 96
----
943-202
1/2" .59 2.28 1.77 3.35 .61 .94 20 80
----
943-203
3/4" .78 2.44 1.89 3.35 .64 1.22 14 56
----
943-204
1"
.98 3.03 2.20 4.61 .75 1.50 6
24
----
943-205
1-1/4" 1.26 3.46 2.36 4.61 .77 1.89 4
16
----
943-206
1-1/2" 1.57 3.94 3.15 6.30 .77 2.12 2
8
----
943-207
2" 1.97 4.45 3.15 6.30 .79 2.63 1
4
----
942-208
2-1/2" 2.48 5.94 4.17 7.48 1.06 3.30 ---
5
----
942-209
3" 2.99 6.85 5.47 9.84 1.14 3.89 ---
3
----
942-210
4" 3.54 7.67 5.88 9.84 1.50 4.80 ---
2
----
See additional handle options on page 162.
POS Components
Materials
N
1
Body
Forged Brass 1
2
End Connection Forged Brass 1
3
Ball
CP Brass
1
4
Ball Stems
P.T.F.E.
2
5
Stem Antif. Seat
P.T.F.E.
1
6
Stem Seat
P.T.F.E.
1
7
Brass Ring
Brass
1
8
Stem
Brass
1
9
O-Ring
NBR 80
1
10
Handle
Steel
1
11
Nut
Steel
1
12
Nut
Brass
1
8
11
12
6
5
9
7
1 4
3 2
10
• Nickel plated body available upon
special request.
• Optional stainless steel parts
available upon special request.
