SWIVEL MALE ADAPTER
BRASS RIGID MALE BSPT BARB ADAPTER
MSB
122HBL
HM
129
178
73
108

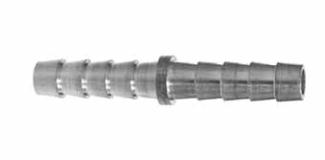

MENDER/ SPLICER
SMS
103
Part #
Hose I.D. x
Male NPTF
A B Hex Approx.
Wt. Lbs.
32-200
1/4” x 1/4” 2.12 0.97 0.56
0.04
----
32-201
3/8” x 1/4” 2.12 0.97 0.56
0.07
----
32-202
3/8” x 3/8” 2.12 0.97 0.68
0.08
----
32-355
1/2” x 3/8” 2.12 0.97 0.68
0.10
----
32-356
1/2” x 1/2” 2.33 0.97 0.87
0.14
----
32-357
3/4” x 3/4” 2.33 0.97 1.06
0.20
----
Part # Hose I.D. x
Hose I.D.
A B O.D.
Approx.
Wt. Lbs.
32-091
1/8”
0.98 0.45 0.31
0.01
----
32-092
3/16”
1.62 0.77 0.36
0.02
----
32-093
1/4”
2.00 0.96 0.37
0.02
----
32-079 1/4" x 1/8" 1.55 0.97 0.56
----
32-094
5/16”
2.00 0.96 0.39
0.02
----
32-095
3/8"
2.00 0.94 0.51
0.04
----
32-080 3/8" x 1/4" 2.06 0.97 0.56
----
32-096
1/2”
2.00 0.96 0.62
0.06
----
32-087 1/2" x 3/8" 2.06 0.97 0.71
----
32-097
5/8”
2.05 0.96 0.75
0.08
----
32-088 5/8" x 3/8" 2.06 0.97 0.75
----
32-098
3/4”
2.50 1.15 0.87
0.10
----
32-089 3/4" x 1/2" 2.28 1.19 0.87
----
32-099
1"
3.00 1.44
0.23
----
A
Hex
B
A
O.D.
B
Rotation 360°
See Bronze insert fittings on page 300 for larger sizes.
See Hose Clamps on page 255-269 .
For Stainless Barb Fittings see pg. 26 or beverage section, pg. 301
Part #
Hose I.D. x BSPT
32-450
1/4" x 1/8"
----
32-451
1/4" x 1/4"
----
32-452
3/8" x 1/4"
----
32-453
3/8" x 3/8"
----
32-454
3/8" x 1/2"
----
32-455
1/2" x 3/8"
----
32-456
1/2" x 1/2"
----
32-457
3/4" x 3/4"
----
32-458
1" x 1"
----
