127
B
RASS
•Typical Application
Air Brake hose connections.
Meets SAE & DOT specifications
(FMVCS 10 GAL)
•Pressure
Determined by maximum working pressure for hose size.
Up to 125 psi
•Material
CA360 Brass.
Temperature: -400F to + 1200 F ( -40°C to +48°C )
•Advantages
Can be used for nearly any brake line. Easy to assemble
with a good selection of hose end configurations. Brass
material offers excellent resistance against corrosion.
• Tolerance
+/- .02 on all dimensions. Dimension data can change
without notice. Please call us when dimensions are
critical.

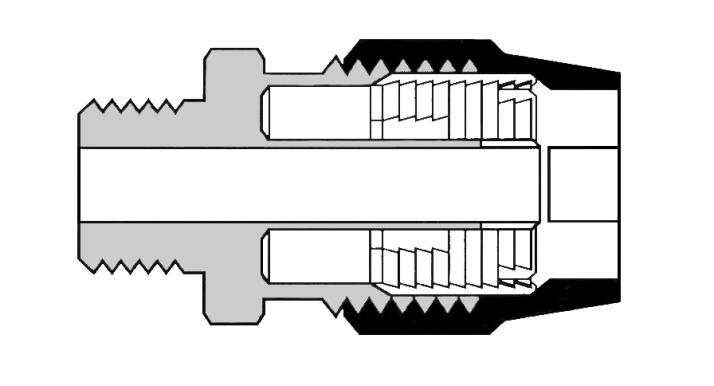

•Assembly Instructions
1- Slide nut and sleeve onto hose. Make sure bevel edge of
sleeve faces out toward fitting.
2- Push hose into fitting until it bottoms.
3- Screw nut until contact is made with body hex.
NOTE: When reassembling fitting, body and
nut should be inspected. Only reuse if in proper condition.
Sleeves should never be reused.
D.O.T. Air Brake - Hose/ Ends
D.O.T. AIR BRAKE - HOSES/ENDS BRASS FITTINGS
