Page 19 - ABS150Mutipurpose(1)

SEO Version

UniMatch
®
Multipl
e V-Belts & Cogged Raw Edge Classical V-Belts
19
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
D90
D105
D112
D115
D120
D128
D132
D135
D136
D139
D140
D144
$59.68
69.44
74.08
75.90
79.20
84.40
86.90
88.88
89.60
94.80
94.80
94.80
3.40
4.00
4.20
4.30
4.50
4.80
5.00
5.10
5.20
5.20
5.30
5.40
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
D148
D153
D154
D155
D158
D159
D162
D165
D171
D173
D180
D195
$104.00
104.00
104.00
104.00
104.00
104.00
107.20
109.19
113.00
113.60
118.00
128.00
6.00
6.00
6.00
6.00
6.00
6.10
6.10
6.20
6.40
6.50
6.80
7.30
Inside length
plus 5 inches equals
outside length.
FOR NOTCHED CONSTRUCTION ADD 25% TO THE LIST PRICE.
D Section Classical V-Belts
(1-1/4-inch Top Width,
3/4-inch Thick)
UniMatch Multiple V-Belts (cont.)
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
D205
D210
D225
D240
D248
D255
D270
D285
D300
D315
D330
D345
$136.00
140.00
146.60
155.20
157.20
162.00
174.80
184.00
194.00
200.00
213.60
224.00
7.90
8.40
8.40
9.00
9.00
9.50
10.00
10.70
11.20
11.80
12.40
12.60
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
D355
D360
D390
D394
D420
D441
D450
D480
D540
D600
D660
$229.60
232.80
252.20
256.00
272.80
286.36
292.20
312.80
352.80
392.80
432.80
13.00
13.50
14.60
14.80
15.80
16.50
16.95
18.10
20.20
22.40
24.80
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
E144
E180
E195
E210
$136.40
170.00
184.00
198.40
9.30
9.30
10.00
12.00
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
E225
E240
E270
E300
$210.60
222.80
250.40
278.40
13.00
13.50
15.30
17.00
Inside length
plus 6 inches equals
outside length.
FOR NOTCHED CONSTRUCTION ADD 25% TO THE LIST PRICE.
E Section Multiple V-Belts
(1-1/2-inch Top Width, 1-inch Thick)
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
E310
E330
E360
E390
$287.83
306.40
334.00
361.80
17.60
18.80
20.40
22.10
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
E420
E441
E460
E480
$394.00
450.38
437.96
457.00
23.80
25.00
26.00
28.00

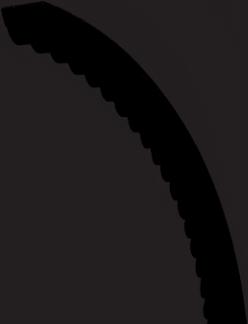

UniMatch
®
Cogged Raw Edge
Classical V-Belts
Oil and heat resistant. Static dissipating.
RMA spec multiple V-belts in a raw edge, cogged construction are especially useful for high speed, compact
drives. These belts all have the UniMatch feature (see introduction).
Raw edge, cogged multiple V-belts are listed by industry number in which the first letter indicates belt sec-
tion, the X is a cogged construction and the number is belt inside length in inches.
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
AX18
AX20
AX22
AX23
AX24
AX25
AX26
AX27
AX28
AX29
AX30
AX31
AX32
AX33
AX34
AX35
AX36
AX37
$10.40
10.40
10.40
10.40
10.40
10.40
10.40
10.40
10.40
10.40
11.04
11.20
11.40
11.60
11.84
12.00
12.24
12.56
.17
.17
.17
.17
.17
.18
.18
.18
.19
.20
.20
.21
.21
.22
.23
.24
.24
.25
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
AX38
AX39
AX40
AX41
AX42
AX43
AX44
AX45
AX46
AX47
AX48
AX49
AX50
AX51
AX52
AX53
AX54
AX55
$12.80
13.04
13.28
13.52
13.76
14.00
14.20
14.30
14.40
14.72
14.72
15.04
15.04
15.20
15.36
15.52
15.76
15.92
.26
.26
.26
.27
.28
.29
.30
.31
.31
.31
.32
.33
.33
.34
.35
.35
.36
.36
Inside length
plus 2 inches equals
outside length.
AX Section Cogged Classical V-Belts
(1/2-inch Top Width,
5/16-inch Thick)
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
AX56
AX58
AX59
AX60
AX61
AX62
AX63
AX64
AX65
AX66
AX67
AX68
AX69
AX70
AX71
AX72
AX73
AX74
$ 16.08
16.36
16.52
16.80
17.20
17.20
17.33
17.60
18.03
18.00
18.20
18.40
19.14
19.20
19.36
19.63
19.68
19.84
.37
.38
.40
.40
.40
.41
.41
.42
.43
.43
.44
.45
.46
.46
.47
.48
.48
.48
Ind.
Belt
No.
List
Price
Approx.
Weight
(lbs.)
AX75
AX76
AX77
AX78
AX80
AX84
AX85
AX86
AX90
Ax92
AX96
AX105
AX108
AX110
AX112
AX120
AX128
AX136
$20.00
20.26
20.64
20.96
21.60
23.00
23.20
23.47
24.80
25.35
26.40
28.80
29.26
31.04
32.00
34.40
36.80
39.20
.49
.50
.50
.51
.52
.54
.55
.56
.59
.61
.62
.68
.70
.71
.73
.74
.78
.82
®
