INERTEX @ UHFJoint Sealant
looksandfeelsdifferent from other
Joint Sealantproducts.It is smooth
andflexIble with an exceptionally uniform
textureanddensity. Under thesuiface is a
microscopic structurethat makes this remarkable
material thestrongest,mostversatilesealant
availabletoday.
INERTEX @ UHF Joint Sealant is made of
100% expandedvirgin PTFE. INERTEX @
alone usesapatented processthat producesa
uniform and highly fibrillated microstructure
with thousands ofsmall fibers running in many
directions. Thesecreatea soft and pliable, yet
very tough oval-shaped joint sealant that is
very compressiblewith a high tensilestrength.
INERTEX@ UHF Joint Sealant provides
excellentcoldflow and creeprelaxation resistance.
It is FDA suitable and it comeswith an easy peel
offselfadhesive backing that makesinstallation
simple.
EASY INSTALLATION
1. Choose INERTEX @UHF Joint Sealant
that is approximately 1/3 to 1/2 the
width of the sealingsurface.
2. Peeloff the adhesivebackingand apply it
around the flange inside the bolt circle.
3. Overlap endsabout 3/4" at a bolt hole.
4. Follow standard torquing sequence to
tighten.
INERTEX@ HIGH PERFORMANCE
.100% expandedvirgin PTFE
.Withstands awide rangeof temperatures
from -4500 F to + 6000 F
.Unaffected by common chemicals,
pH range, 0-14
.Non-contaminating, non-toxic
.FDA suitable (FDA 21 CRR177.1550)
.Will not ageor harden in service
.Extremely strong; pressurerangefrom full
vacuum to 3000 PSI
INERTECH CUSTO~ER SERVICE
INERTECH manufacturesa full line of advanced
sealingproducts including GasketSheet,Gasket
Tape, Joint Sealant,Valve StemPacking,Thread
Tape and EZ-Seal InsertableGaskets.For assis-
tancewith customapplications or for more infor-
mation, consult your INERTEX @distributor.

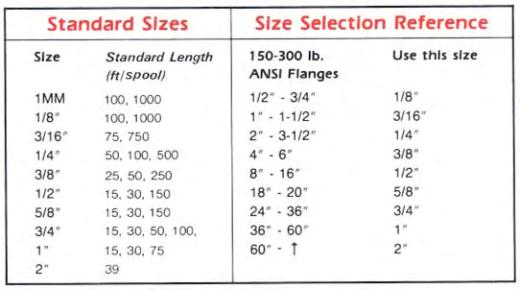

STANDARD AND CUSTOM SIZES
FOR ANY NEED
INERTEX @ UHF Joint Sealantcanbe ordered
in awide variety of sizesand lengths. All sizes
with the exception of IMM include an easy

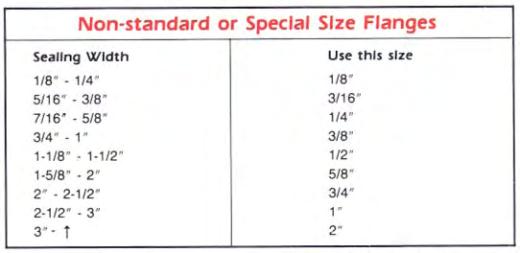

peel, self-adhesivebacking. Custom sizesand
shapesareavailablefor specialapplications.
Consult your INERTEX @distributor about
custom INERTEX @products.
Distributed By:
For more information
Call 800-732-5835
or
Fax 800-732-8828
JSBROR35-5
MFG. UNDER U.S. PATENT NO. 5,098,625
