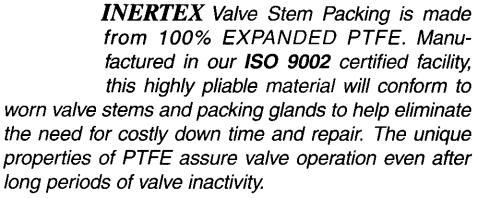

worn valve stems and packing glands to help eliminate
the need for costly down time and repait: The unique
properties of PTFE assure valve operation even after
long periods of valve inactivity;
INERTEX...THE RIGHT CHOICE!
FOR LONGER SERVICE LIFE
Because INERTEX uses 100% pure PTFE with no
fillers or additives, INERTEX Valve Stem Packing will
not harden or dry out in service. INERTEX Valve Stem
Packing normall¥ will outlive the life of the valve!
INERTEX VALVE STEM PACKING
FOR DEPENDABLE PERFORMANCE

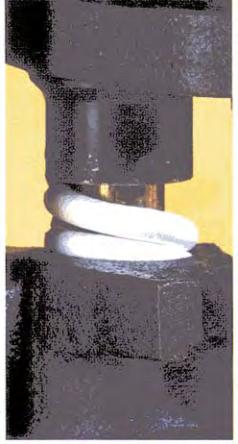

INERTEX Valve Stem Packing

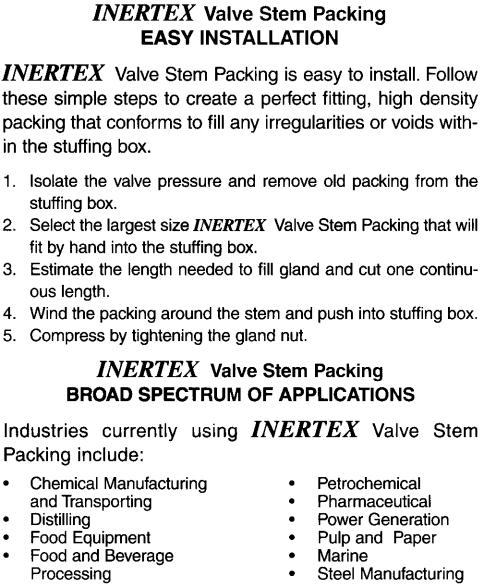

EASY INSTAllATION
INERT EX Valve Stem Packing is easy to install. Follow
these simple steps to create a perfect fitting, high density
packing that conforms to fill any irregularities or voids with-
in the stuffing box.
1. Isolate the valve pressure and remove old packing from the
stuffing box.
2. Select the largest size INERTEX Valve Stem Packing that will
fit by hand into the stuffing box.
3. Estimate the length needed to fill gland and cut one continu-
ous length.
4. Wind the packing around the stem and push into stuffing box.
5. Compress by tightening the gland nut.
INERTEX Valve Stem Packing
BROAD SPECTRUM OF APPLICATIONS
Industries currently using INERTEX Valve Stem
Packing include:
.Chemical Manufacturing .Petrochemical
and Transporting .Pharmaceutical
.Distilling .Power Generation
.Food Equipment .Pulp and Paper
.Food and Beverage .Marine
Processing .Steel Manufacturing
.100% expanded virgin PTFE
.Withstands a wide range of temperatures from
-450°F to +600°F
.Unaffected by common chemicals, pH range: 0 -14
.Non-contaminating, non-toxic
.FDA suitable (FDA 21 CFR177.1550)
.Will not age, harden, shrink or dry out in service
.Withstands the pressure limits for which the valve
is designed
.Adds service life to old and worn valves
.Valve still activates easily after long periods of non-use
.Helps you meet tough EPA requirements for
fugitive emissions
INERTEX VALVE STEM PACKING
STANDARD AND CUSTOM SIZES
INERT EX Valve Stem Packing is available in the sizes
listed below. Please caliinertech, Inc. for custom sizes for
non-standard valves and special applications.
1/16 X 50'
3/32 X 25'
3/32 X 50'
1/8 X 25'
5/32 X 25'
3/16 X 15'.
3/16 X 25'
7/32 X 15'
7/32 X 25'
1/4 X 12'
9/32 X 9'
5/16 X 7'
3/8 X 7'
1/2 X 12'
5/8 X 25'
3/4 X 25'
1 X 15'

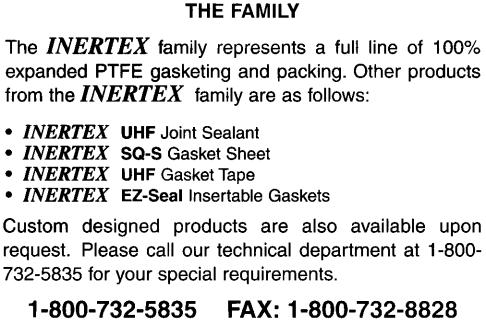

THE FAMILY
The INERTEX family represents a full line of 100%
expanded PTFE gasketing and packing. Other products
from the INERTEX family are as follows:
.INERTEX UHF Joint Sealant
.INERTEX SQ-S Gasket Sheet
.INERTEX UHF Gasket Tape
.INERTEX EZ-Seal Insertable Gaskets
Custom designed products are also available upon
request. Please call our technical department at 1-800-
732-5835 for your special requirements.
1-800-732-5835 FAX: 1-800-732-8828
Distributed By:
MFG. UNDER U.S. PATENTNO. 5,098,625 VS BROR 35-5
