SPRING BAND CLAMPS
SB15
46015
1/4
1/2
11/16
SB19
46019
3/8
11/16
13/16
SB22
46022
1/2
13/16
15/16
SB25
46025
5/8
15/16
1 1/16
SB29
46029
3/4
1 1/16
1 3/16
SB34
46034
1
1 3/16
1 1/2
SB41
46041
1 1/4
1 1/2
1 3/4
SB48
46048
1 1/2
1 3/4
2
SB54
46054
1 3/4
2
2 1/4
SB60
46060
2
2 1/4
2 1/2
SB67
46067
2 1/4
2 1/2
2 3/4
SB73
46073
2 1/2
2 3/4
3
SB79
46079
2 3/4
3
3 1/4
SB86
46086
3
3 1/4
3 1/2
SB90
46090
3 1/8
3 1/2
3 5/8
Description
Nominal
Hose ID (in.)
Min. (in.)
Max. (in.)
Ideal
Part No.
English (in.)
POWERGRIP CLAMPING RANGE
N/A
- Not Available
Tridon Stop Tab Spring Band (Ideal N/A)
The stop tab design is delivered in the closed position for
installation with a spring band installation tool.
Tridon Clipless Spring Band (Ideal N/A)
The clipless style is delivered in the full open position for
release with a common screwdriver.
SAE 15mm 20mm SAE 15mm 12mm
Sizes
width
width
Sizes
width
width
15
-
-
15
936150
-
17
958170
-
17
936170
926170
20
958200
-
20
933200
-
23
-
-
23
-
923230
24
958240
-
24
936240
926240
27
958270
-
27
936270
923270
34
958340
-
34
-
-
35
958350
-
35
933350
-
40
-
-
40
936400
926270
42
958420
988420
42
-
-
46
958460
-
46
-
-
47
-
-
47
933470
-
48
958480
-
48
933480
-
49
958540
988490
49
-
-
54
-
988540
54
-
-
55
-
988550
55
936550
-
56
-
988560
56
-
-
61
-
988610
61
-
-
Clipless
Stop Tab
Tridon Part No.
Tridon Part No.
SPRING BAND CLAMPS

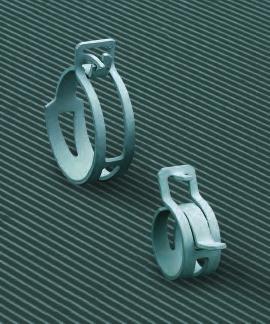

Engineered for automotive original equipment applications, the
heat treated steel construction and spring design compensate
for compression set or thermal cycling. Spring bands can be
pre-installed on the hose as a sub-assembly.
Stop Tab
Spring Band
Clipless
Spring Band
POWERGRIP
™
SB 46 SERIES
Ideal Shrink Band clamps are made of a heat-sensitive thermoplastic with a memory that prevents them from over-tightening
or under-tightening. Shrinks on with a heat gun. They are environmentally friendly, virtually eliminating antifreeze leaks
and groundwater contamination. (Tridon N/A).
For applications involving both high temperatures and the presence of chlorides, or any other special applications, contact us.
We will be glad to help solve your particular fastening problem. Our toll free Help Line is 1-800-221-0100. Ask for Clamp Product Engineering.
