* Models without hose. Hosetract Industries, LTD. • P: 260.489.8828 • F: 260.489.6088
MADE IN THE U.S.A.

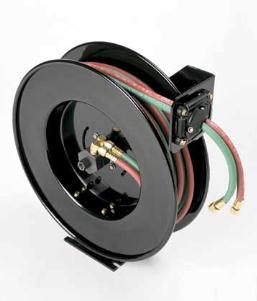

Oxygen/Acetylene Hose Reel
4
For 1/4” Siamese Hose
Model Operating Hose Hose Shipping
Number Pressure I.D. Length Weight
COA-200* 1000 PSI 1/4 IN. — 43#
COA-250 200 PSI 1/4 IN. 50 FT. (Twin) 54#
UTL-200-OA* 1000 PSI 1/4 IN. — 36#
UTL-250-OA 200 PSI 1/4 IN. 50 FT. (Twin) 44#
• The exclusive dual hex was designed
by the original designer of this dual body
concept
•The major advantage of the swivel design is
that in the event of an O-ring failure, the
gases will go to atmosphere instead of
mixing
•Safety banded drive spring
•The swivel is marked for the acetylene side
with notches on the hex nuts for easy
identification
•Beaded edges on spool prevents hose
damage or injury to operator
•8-position guide arm
FEATURES
Reels shipped standard sf
hose payout position. For
ceiling mount add suffix sc.
Oxy Inlet — 1/4” FPT Max. Temp. — 200°F
Acet Inlet — 1/4” FPT
Reel is ideally applied when space and safety is required in the welding & cutting area. The reel is capable of
storing and dispensing 50’ length of twin siamese welding hose.
COA models are the C series, heavy duty standard reels.
UTL models are the Unitract series, lighter duty reels not designed for truck mount applications.
Mounting Slots
1/2” wide x 3/4” deep
for max 7/16” dia. bolt
18 3/4
5
18 6 1/2
3
