FITTINGS
11
Male Pipe Nipple
Alloys
T304 & T316 Stainless
Steel, Carbon Steel, and
Aluminum
Size
Range 1.5” - 8”
Sch. 40 & 80
Selecting the proper fittings for an application is largely determined by the mating fittings to which the hose
assembly will be attached. Once the mating fittings have been identified, the hose fittings should complement the
mating fittings in type, size, and alloy. Even though the selection of hose fittings is determined by the mating fittings,
it is a good idea to confirm that the fittings used are appropriate for the application. Ensure that the fittings are
chemically compatible with the conditions in which the hose will be installed and used.

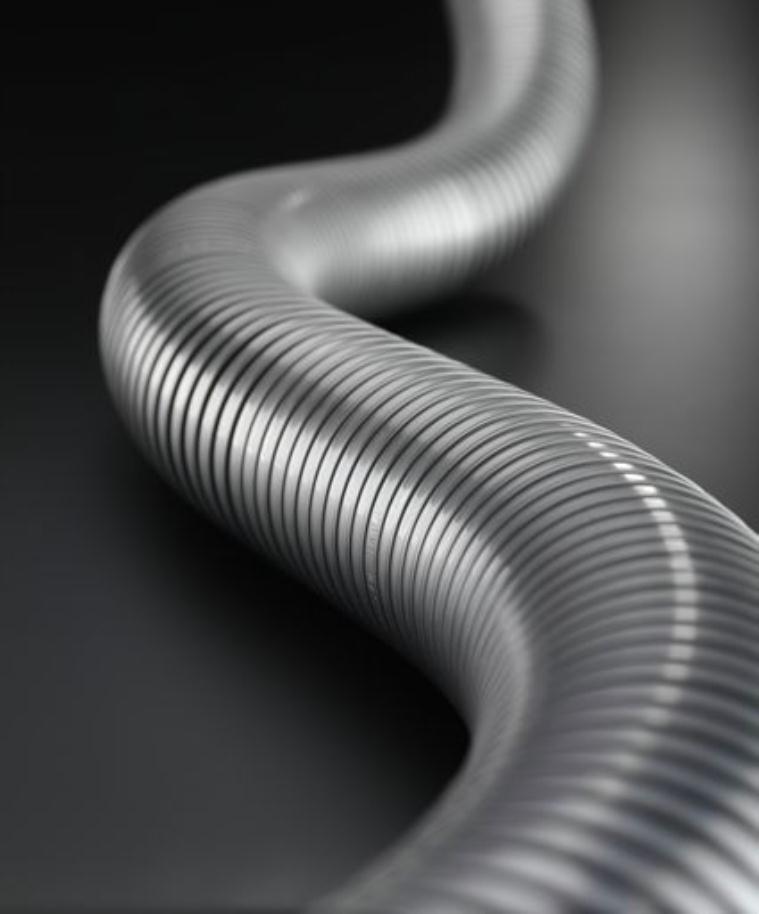

The following pages cover a sampling of commonly used fittings for stripwound metal hose. For items not listed,
please contact Hose Master’s Inside Sales Department.
Grooved-End
Alloys T304 & T316 Stainless
Steel, Carbon Steel
Size
Range 1.5” - 8”
Sch. 40
Slip-on Flange
Alloys T304 & T316 Stainless
Steel, Carbon Steel
Size
Range 1.5” - 12”
Class 150 & 300
Plate Flange
Alloys T304 & T316 Stainless
Steel, Carbon Steel
Size
Range 1.5” - 14”
Class 150# drilling
C-Stub with Floating Flange
Alloys T304 & T316 Stainless
Steel
Size
Range 1.5” - 10”
Sch. 10
Part A and Part D (Cam-Lock)
Alloys T316 Stainless Steel,
Aluminum
Size
Range 1.5” - 10”
Sch. 10
Swivel Part D Coupler
(Reusable)
Alloys Aluminum Body with
Stainless Steel Insert
Size
Range 4” - 6”
Sch. N/A
Tube End
Alloys
T304 & T316 Stainless
Steel, Carbon Steel, and
Aluminum
Size
Range 1.5” - 8”
Wall
Thick. Various
