TAR & ASPHALT PRODUCTS
9
800-221-2319 • www.hosemas ter. com
Inside
Diameter
(in.)
TA 30 GS
Min. Bend
Radius
(in.)
Weight per
Foot
(lbs.)
1.5 9 1.8
2 12 2.2
2.5 15 2.8
3 17 3.2
4 22 4.2

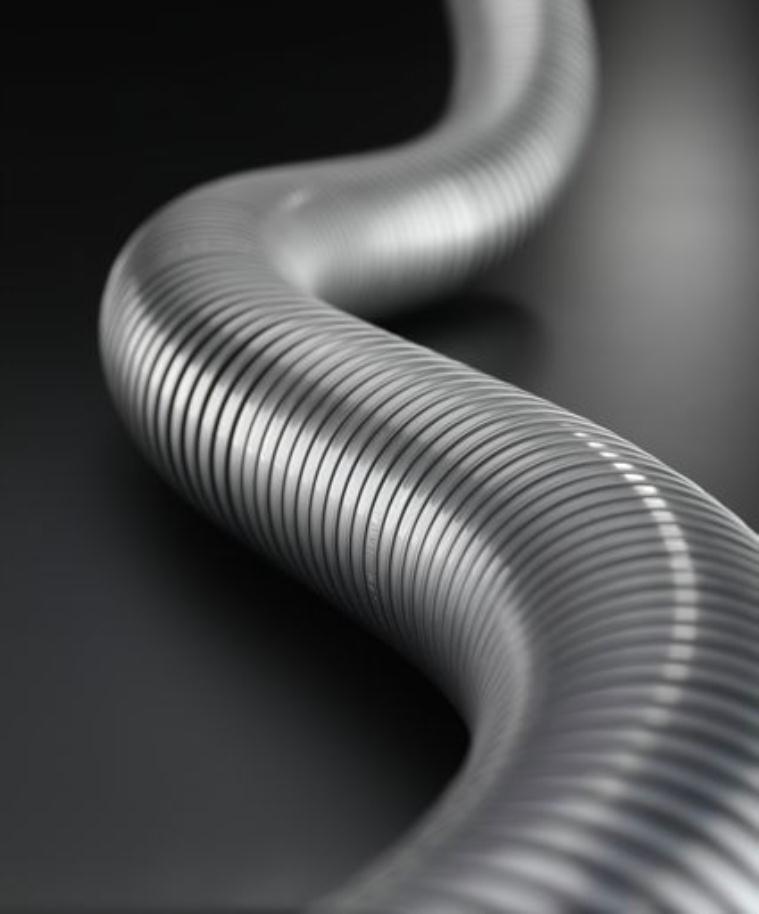

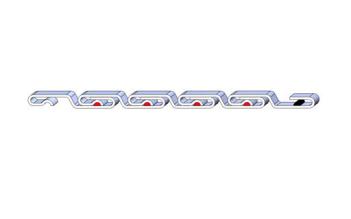

TAR & ASPHALT (Roughbore) is Hose Master’s heavy-weight interlocked metal hose. Constructed
from a single strip of galvanized steel with Hose Master's proprietary packing, this hose is used for
transferring high-temperature, viscous fluids. Tar & Asphalt hose is leak-resistant and handles maximum
suction. It is design-tested to 100 psi and has a temperature range of -40º F. to 500º F.
TAR & ASPHALT (Roughbore) Hose Specifications
Other diameters are available upon request. • Minimum bend radius is measured from the centerline of the hose.
TAR & ASPHALT
Part Numbers TA Thickness Material
Material Code
GS - Galvanized Steel
Thickness Code
30 - Extra Heavy Weight
Heavy-duty, reusable rigid male or female swivel fittings are available upon request. These specialized
fittings are packed onto the hose ends, eliminating the need for welding that could burn the sealant packing
within the hose.
Tar & Asphalt Male and
Female Connections
Alloys Malleable Iron
Size
Range 1 1/2” thru 3”
Sch. N/A

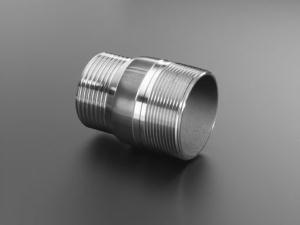

Tar & Asphalt Shank Male
Alloys Malleable Iron
Size
Range 1 1/2” thru 4”
Sch. 40
TAR & ASPHALT HOSE
TAR & ASPHALT FITTINGS
