(Chlorine Transfer Assembly) ChlorSafe™
ChlorSafe™ is Hose Master’s 276 alloy, corrugated chlorine-transfer assemblies, designed
specifcally to meet the demands of this application. With considerations made for both wet and dry
chlorine, these assemblies are the safest available. Hose Master’s ChlorSafe™ assemblies are
manufactured in compliance with the Chlorine Institute Pamphlet 6, Appendix A, latest edition.
Explanation of ChlorSafe™ Part Numbers
AF 67 _______
Braid Code
Braid Codes
20 - C276 Single Braid
22 - C276 Double Braid
Example: AF6720 = C276 annular corrugated metal hose with a single C276 braid
• The minimum bend radius is measured from the center-line of the hose
• Per Chlorine Institute specifcations, pressure ratings represent a 5:1 safety factor
• For pressures in excess of Chlorine Institute standards, please consult the factory
Inside
Diameter
(in.)
Number of
Braids
(#)
Outside
Diameter
(in.)
Dynamic
Minimum
Bend
Radius
(in.)
Maximum
Working
Pressure
(psi)
Burst
Pressure
(psi)
1/2 1
2
0.83
0.89 8.0 500 2500
3/4 1
2
1.22
1.28 9.0 375 1875
1 1
2
1.53
1.59 10.0 375 1875
1 1/2 1
2
2.16
2.24 11.0 375 1875
2 1
2
2.69
2.77 13.0 375 1875
14

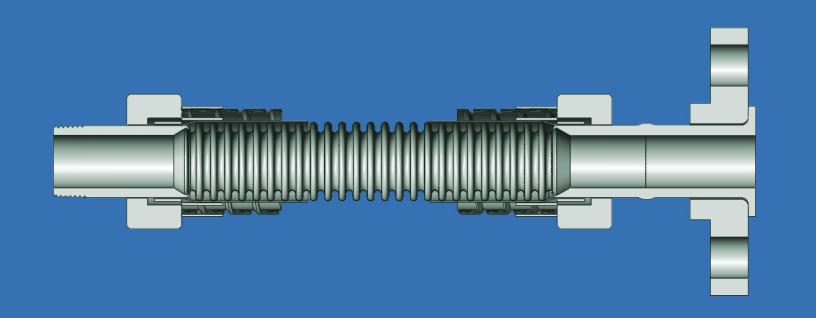

276 “A” Stub with
300# Carbon Steel
Flange
276 Annular
Corrugated Metal
Hose
Smooth Transition
Weld
276 Schedule 80
Male NPT
Stainless Steel
Interlocked Guard
276 Braid
ChlorSafe™ Features:
• Hose Master’s unique hydroforming process reduces residual stress and produces the most
fexible chlorine-transfer hose available
• ChlorSafe’s™ all-metal construction makes it fre-resistant
• Proprietary welding techniques provide a smooth transition from hose to ftting with no gaps or
crevices to entrap contaminants
• All welds are argon-purged to eliminate oxidation
ChlorSafe™ Specifcations:
• All wetted surfaces and the braid are made from UNS N10276 (referred to as either C276 or 276
alloy) which has the highest chemical resistance rating for both dry and wet chlorine1
• Every assembly is helium mass spectrometer leak tested to at least 5.0 x 10-6 std cc/sec
• Each assembly is covered by a stainless steel interlocked metal hose for maximum durability
• All assemblies are strength-tested to twice maximum allowable working pressure
1 Kenneth M. Pruett, Chemical Resistance Guide for Metals and Alloys: A Guide to
Chemical Resistance of Metals Alloys (Derby: Compass Publications, 1995), 93.
