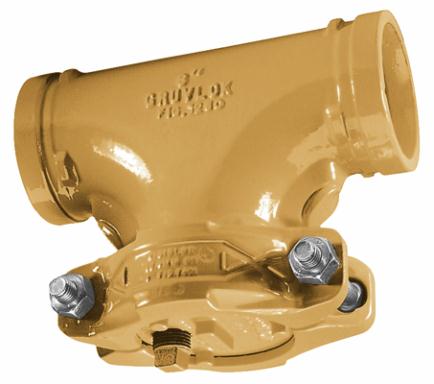

FIG. 7260
Tee Strainer
The Fig. 7260 Tee Strainer provides an economical, compact
and hydraulically effcient means of protecting valuable piping
system components. The in-line, twin-fold strainer basket
provides more than 100% of the projected pipe area for open
fow through the strainer screen which results in excellent
fow performance across the strainer.
Gruvlok Strainers are designed and tested to ensure long term,
reliable service in working pressures up to 750 psi (51.7 bar),
depending on size and the pressure rating of the connecting
coupling.
material specifications
BODY:
2" - 12" malleable iron conforming to ASTM A 47 or Ductile iron
conforming to ASTM A 536.
14" - 18" Carbon steel pipe conforming to ASTM A 53.
STRAINER BASKET:
Stainless steel type 304 bar and woven wire screen. 12 mesh in sizes 2" - 3"
and 6 mesh in sizes 4" - 18". Other mesh sizes available on request.
ACCESS COUPLING & END CAP:
2" - 12" Malleable iron conforming to ASTM A 47 or Ductile iron
conforming to ASTM A 536.
14" - 18" Low carbon steel conforming to ASTM A 53
BOLTS & NUTS:
Heat treated, oval-neck track head bolts conforming to ASTM A 183
Grade 2 with a minimum tensile strength of 110,000 psi and heavy hex
nuts of carbon steel conforming to ASTM A 563. Bolts and nuts are
provided zinc electroplated as standard.
COUPLING GASKETS:
Elastomer properties as designated by ASTM D 2000
Grade “E” EPDM -40°F to +230°F (services temp. range)
Other options available upon request.
DRAIN PLUG: Carbon steel square head plug conforming to ASME B16.11
TAP SIZES: 2"-4" – 1/2 NPT, 5"-8" – 3/4 NPT, 10"-18" – 1 NPT,
COATING:
2" - 12" - Rust-inhibiting paint — color: orange (standard)
Hot Dip Galvanized conforming to ASTM A 153 (optional)
Other Colors Available (IE: RAL3000 and RAL9000)
For other Coating requirements contact a Gruvlok Representative.
NOTE:
Most U.S. piping engineers specify system startup instructions for new systems which include remov-
ing and cleaning the strainer screen after system fushing of main piping before the system is put
into normal operation. After fushing, replace the strainer screen. Flow data values are based on
fow of clean water at ambient temperatures. The pressure drop across a strainer, 50% clogged,
is approximately twice as great as that of a clean strainer. Strainer baskets need a routine
maintenance program to maintain effciency and to prevent excess pressure drop caused by a
clogged screen.
FLOW (GPM)
FLOW CHARACTERISTICS
ISP - PORD ERUSSERP
