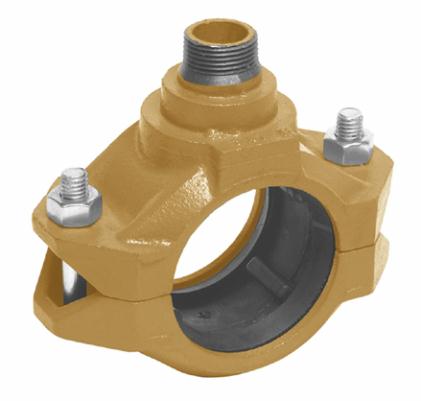

Fig. 7042
Outlet Coupling
The Gruvlok Fig. 7042 Outlet Coupling is designed to join two
sections of grooved end pipe and form a reducing outlet
connection. The outlet couplings are available for the 1 1/2"
through 6" IPS or ISO run pipe sizes with the outlet pipe sizes
ranging from 1/2" through 2".
Assembly of the coupling will create a gap between the pipe
ends allowing the space required for the introduction of an
outlet connection. The outlet connections are available
grooved (Fig. 7042G), FPT (Fig. 7042F) and MPT (Fig. 7042M).
The gaskets are available in EPDM and Nitrile to suit a wide
range of applications. The gasket design is a unique pressure
responsive design that provides a higher sealing force as
pressure is increased. The outlet gasket seal is reinforced by a
steel ring and is mated to a machined housing surface to
assure a leak-tight outlet seal. Center ribs inside the gasket
ease positioning of the pipe during installation and provide
additional support to the gasket. The outlet couplings
are NOT recommended for vacuum applications or for use
with the Gruvlok Advanced Copper Method.
MATERIAL SPECIFICATIONS
ANSI BOLTS & HEAVY HEX NUTS:
Heat treated, oval neck track head bolts conforming to ASTM A 183
Grade 2 with a minimum tensile strength of 110,000 psi and heavy hex
nuts of carbon steel conforming to ASTM A 563 Grade A or Grade B, or
J995 Grade 2. Bolts and nuts are provided zinc electroplated as standard.
METRIC BOLTS & HEAVY HEX NUTS:
Heat treated, zinc electroplated oval-neck track head bolts made of
carbon steel with mechanical properties per ISO 898-1 Class 8.8. Hex
nuts are zinc electroplated followed by a yellow chromate dip.
STAINLESS STEEL BOLTS & NUTS:
Stainless steel bolts and nuts are also available. Contact a Gruvlok
Representative for more information.
HOUSING:
Ductile Iron conforming to ASTM A 536, Grade 65-45-12.
COATINGS:
Rust inhibiting paint Color: ORANGE (standard)
Hot Dipped Zinc Galvanized (optional)
Other Colors Available (IE: RAL3000 and RAL9000)
For other Coating requirements contact a Gruvlok Representative.
GASKETS: Materials
Properties as designated in accordance with ASTM D 2000
Grade “E” EPDM (Green color code)
-40°F to 150°F (Service Temperature Range)(-40°C to 66°C)
Recommended for water service, diluted acids, alkalies solutions, oil-
free air and many chemical services.
NOT FOR USE IN PETROLEUM APPLICATIONS.
Grade “T” Nitrile (Orange color code)
-20°F to 150°F (Service Temperature Range)(-29°C to 66°C)
Recommended for petroleum applications. air with oil vapor and
vegetable and mineral oils.
NOT FOR USE IN HOT WATER OR HOT AIR.
LUBRICATION:
Standard Gruvlok
Gruvlok XtremeTM(Do Not use with Grade “L”)
The Figure 7074 Cast Caps are NOT recommended for use on
run connections. Figure 7075 Bull Plugs must be used on end of
line run connections. Figure 7074 Cast Caps may be used on
Figure 7042G outlet connections. Flow into the outlet connection
of the Figure 7042 Outlet Couplings must not exceed 7 ft./sec.
