Fig. 7013
Gruvlok Flanges (#300 Flange)

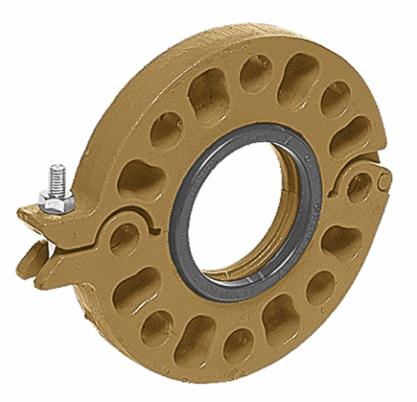

The Gruvlok Fig. 7013 300# Flange allows direct connection of
Class 250 or Class 300 fanged components to a Gruvlok
piping system. The two halves of the 2" thru 12" sizes of both
Gruvlok Flanges are drawn together by a latch bolt which eases
assembly on the pipe. A specially designed gasket provides a
leak-tight seal on both the pipe and the mating fange face.
Gruvlok Flanges have designed-in anti-rotation tines which
bite into and grip the side of the pipe groove to provide a
secure, rigid connection.
Gruvlok fange adapter insert required when mating to rubber
surfaces or serrated faced mating fanges.
MATERIAL SPECIFICATIONS
ANSI BOLTS & HEAVY HEX NUTS:
Heat treated, oval neck track head bolts conforming to ASTM A 183
Grade 2 with a minimum tensile strength of 110,000 psi and heavy hex
nuts of carbon steel conforming to ASTM A 563 Grade A or Grade B, or
J995 Grade 2. Bolts and nuts are provided zinc electroplated as standard.
METRIC BOLTS & HEAVY HEX NUTS:
Heat treated, zinc electroplated oval-neck track head bolts made of
carbon steel with mechanical properties per ISO 898-1 Class 8.8. Hex
nuts are zinc electroplated followed by a yellow chromate dip.
STAINLESS STEEL BOLTS & NUTS:
Stainless steel bolts and nuts are also available. Contact a Gruvlok
Representative for more information.
HOUSING:
Ductile Iron conforming to ASTM A 536, Grade 65-45-12.
COATINGS:
Rust inhibiting paint Color: ORANGE (standard)
Hot Dipped Zinc Galvanized (optional)
Other Colors Available (IE: RAL3000 and RAL9000)
For other Coating requirements contact a Gruvlok Representative.
GASKETS: Materials
Properties as designated in accordance with ASTM D 2000
Grade “E” EPDM (Green color code) NSF 61 Certifed
-40°F to 230°F (Service Temperature Range)(-40°C to 110°C)
Recommended for water service, diluted acids, alkalies solutions,
oil-free air and many chemical services.
NOT FOR USE IN PETROLEUM APPLICATIONS.
Grade “T” Nitrile (Orange color code)
-20°F to 180°F (Service Temperature Range)(-29°C to 82°C)
Recommended for petroleum applications. air with oil vapors and
vegetable and mineral oils.
NOT FOR USE IN HOT WATER OR HOT AIR.
LUBRICATION:
Standard Gruvlok
Gruvlok XtremeTM (Do Not use for Grade “L”)
GL-2.10
