couplings for grooved-end pipe
www.anvilintl.com 24

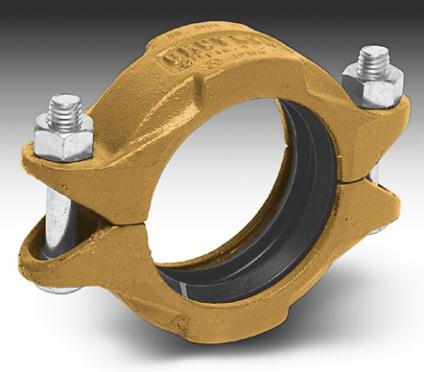

Fig. 7000
Lightweight Flexible Coupling
The Fig. 7000 Lightweight Flexible Coupling is designed for
applications where system fexibility is desired.
The Fig. 7000 Coupling is approximately 30% lighter in weight
than the Fig. 7001 Coupling, and allows for working pressure
ratings up to 600 psi (41.4 bar).
The Figure 7000 Lightweight Flexible Coupling is intended for
use in several applications. See gasket Grade Index for gasket
recommendations.
See technical data section for design factors.
MATERIAL SPECIFICATIONS
ANSI BOLTS & HEAVY HEX NUTS:
Heat treated, oval neck track head bolts conforming to ASTM A 183
Grade 2 with a minimum tensile strength of 110,000 psi and heavy hex
nuts of carbon steel conforming to ASTM A 563 Grade A or Grade B, or
J995 Grade 2. Bolts and nuts are provided zinc electroplated as standard.
METRIC BOLTS & HEAVY HEX NUTS:
Heat treated, zinc electroplated oval-neck track head bolts made of
carbon steel with mechanical properties per ISO 898-1 Class 8.8. Hex
nuts and bolts are zinc electroplated followed by a yellow chromate dip.
STAINLESS STEEL BOLTS & NUTS:
Stainless steel bolts and nuts are also available. Contact a Gruvlok
Representative for more information.
HOUSING:
Ductile Iron conforming to ASTM A 536, Grade 65-45-12
COATINGS:
Rust inhibiting paint Color: ORANGE (standard)
Hot Dipped Zinc Galvanized (optional)
Other Colors Available (IE: RAL3000 and RAL9000)
For other Coating requirements contact a Gruvlok Representative.
GASKETS: Materials
Properties as designated in accordance with ASTM D 2000
Grade “E” EPDM (Green color code) NSF 61 Certifed
-40°F to 230°F (Service Temperature Range)(-40°C to 110°C)
Recommended for water service, diluted acids, alkalies solutions, oil-
free air and many chemical services.
NOT FOR USE IN PETROLEUM APPLICATIONS.
Grade “T” Nitrile (Orange color code)
-20°F to 180°F (Service Temperature Range)(-29°C to 82°C)
Recommended for petroleum applications. air with oil vapors and
vegetable and mineral oils.
NOT FOR USE IN HOT WATER OR HOT AIR
Grade “O” Fluoro-Elastomer (Blue color code)
-20°F to 300°F (Service Temperature Range)(-29°C to 149°C)
Recommended for high temperature resistance to oxidizing acids,
petroleum oils, hydraulic fuids, halogenated hydrocarbons and
lubricants.
Grade “L” Silicone (Red color code)
-40°F to 350°F (Service Temperature Range)(-40°C to 177°C)
Recommended for dry, hot air and some high temperature chemical
services.
GASKET TYPE:
Standard C Style
Flush Gap (1" - 8")
LUBRICATION:
Standard Gruvlok
Gruvlok XtremeTM (Do Not use with Grade “L”)
GL-2.10
