MODEL 3006 & 3006C
Roll Groovers

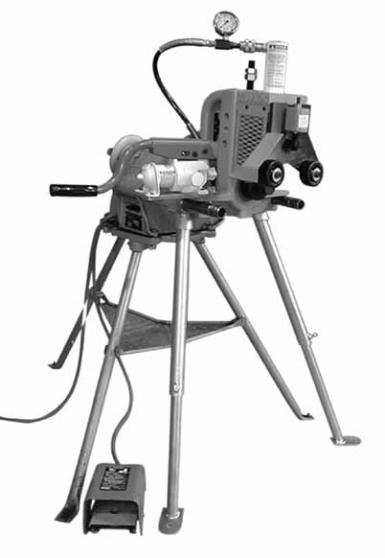

The Gruvlok Model 3006 roll groover features a low
maintenance quick roll change out design with the capability
to groove 2" - 12" steel pipe, as well as 2" - 6" stainless steel.
This machine is also compatible with the Gruvlok Advanced
Copper Method (IPS Copper) and CTS Copper System for
accurate and repeatable grooving of tube as small as 2" in
diameter. Standard with each machine is the patented Gruvlok
hands free nipple guide system. This one of a kind nipple guide
system allows for the shortest nipple grooving in the business
and is hands free for increased operator safety. A special
hydraulic pump with a reduced height handle and pivoting
location allow each operator to customize the machine for
maximum comfort while grooving. Low cost, lightweight, user
friendly, and reliable, the Model 3006 Roll Groover follows the
quality Gruvlok tradition started with 1007/3007 models and
takes the future of roll grooving one step further.
• MODEL 3006C— Dedicated 2" - 6" Advanced Copper Method (IPS Copper)
roll groover sharing the same low maintenance quick roll change features
of the 3006. Optional equipment extends the 3006C. A capability to
include 2" - 12" steel, 2" - 6" stainless steel, as well as 2" - 8" CTS Copper
System.
• WIDE GROOVING RANGE—
2" thru 8" schedule 40 (standard wall) steel pipe,
10" (.188" Wall), 12" (.219” wall), and 2" thru 12" Sch. 10
2" thru 6" Schedule 40S Stainless Steel Pipe, and
2" thru 6" copper type K, L, M, and DWV (up to 8" for CTS).
• PIPE LENGTHS— 20' random schedule 40 (standard wall) to 5" groove
by groove nipples. The shortest roll groove nipple capability in the
industry: hands clear
• HANDS-CLEAR GROOVING OF PIPE AND NIPPLES—
Enhanced operator safety provided by outboard guide roll assembly
• ACCURATE, REPEATABLE GROOVE DIAMETER CONTROL—
Simplifed direct action provided positive, repeatable control for
grooving carbon and stainless piping. For grooving copper, universal
diameter gauge must be utilized.
• BETTER CONTROL OF PIPE FLARE— Outboard guide roll assembly
registers pipe for proper orientation.
• QUICK, EASY SETUP AND ROLL CHANGE
• RUGGED DESIGN REQUIRES MINIMAL MAINTENANCE—
Only periodic application of grease via grease fttings required.
• USER FRIENDLY DESIGN— Pump has a special reduced height handle
and adjustable location for operator comfort and safety.
• EASE OF OPERATION— High grooving forces obtained though use of
large capacity ram requires less pump effort.
Gruvlok roll grooving technology is protected by U.S. Patents
5450738, 5570603, 5778715 and others pending.
