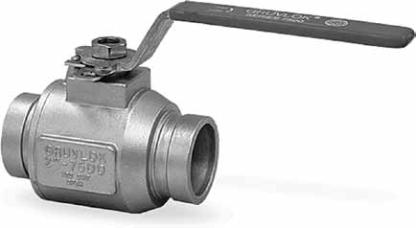

The Anvil Series 7500 Stainless Steel Grooved-End
Ball Valve line consists of 2" to 6" standard port
two piece design. Diverter valves feature full port
confgurations.
The all stainless steel valve incorporates additional
features for more demanding applications. These
features include standard reinforced PTFE seats,
live loaded PTFE chevron stem seals, and lock-out
provisions for 2" - 4". Gear operator standard for 6"
valves.
The 7500 stainless steel grooved-end ball valve is
rated to 720 psig (50 bar) CWP.
SERIES 7500 SS
Grooved-End Ball Valve
MATERIAL SPECIFICATIONS
BODY: Stainless Steel ASTM A 351 Grade CF8M
ENDPLATE: Stainless Steel ASTM A 351 Grade CF8M
BALL: Stainless Steel ASTM A 351 Grade CF8M
STEM: 316 Stainless Steel
THRUST WASHER: RTFE
STEM SEAL: PTFE Chevron
HANDLE: Carbon Steel, Zinc Plated
HANDLE NUT: 300 Series Stainless Steel
SEAT: RTFE
BODY SEAL: Flouroelastomer
LOCK PLATE: 300 Series Stainless Steel
LOCK STOP: 300 Series Stainless Steel
FOLLOWER: 300 Series Stainless Steel
PACKING NUT: 300 Series Stainless Steel
BELLEVILLE WASHER: 17-7 Stainless Steel
SERIES 7500 SS GROOVED END BALL VALVES (ORDERING INFORMATION)
Sample Part
Number
4" G1-7512-1
4" G I- 75 1 2- 1
Size Confguration Body/End
Material Series Ball and Stem
Material Seat/Seals Operator
2" - 6" G - 2 Way
Grooved End
I - Ductile Iron
ASTM A395
75 - 7500 1 - Chrome Plated
Carbon Steel
1 - Nylon/
Flouroelastomer
1 - 2 Position
Handle

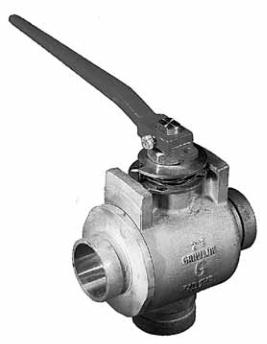

D - 3 Way Diverter,
Grooved End
Standard Port (2")
S - Stainless Steel
ASTM A351
Grade CF8M
2 - 316 Stainless
Steel
2 - RTFE/
Flouroelastomer
2 - 2 Position
Locking Handle
F - 3 Way Diverter,
Grooved End
Full Port (2")
3 - Bare Stem
