*Prices Subject To Change Without Notice • EMAIL: sales@grnleafinc.com • WEBSITE: http://www.grnleafinc.com

&

6

B

O

L

T

B

A

L

V

A

L

V

E

S

4

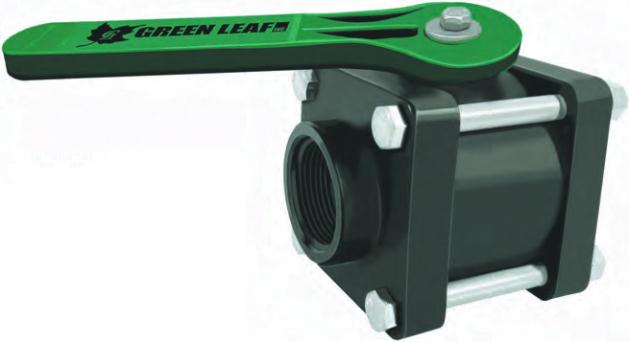

V 204 FP

• Stainless Steel Bolts

• Precision molded in polypropylene.

Polypropylene is reinforced with fiberglass for additional strength.

• Self-aligning ball moves freely against the Teflon® seats for smooth operation.

The valve opens and closes with little pressure on the handle.

• Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.

• Viton® “O” rings.

• Teflon® self-lubricating stem bushings and seats cannot stick or bind.

• 4 Bolt — Maximum operating pressure 150 PSI@ 70ºF. 75 PSI@ 150ºF.

• V 204 FP — Maximum operating pressure 125 PSI@ 70ºF. 75 PSI@ 150ºF.

• 6 Bolt — Maximum operating pressure 100 PSI@ 70ºF. 75 PSI@ 150ºF.

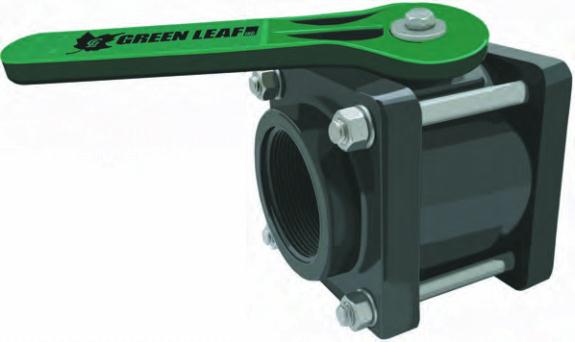

Four Bolt Valves

V 125 FP

V 150 FP

V 200

V 204 FP

PART # DESCRIPTION MAXIMUM PSI OPENING THRU BALL

1 1/4” Full Port

1 1/2” Full Port

2” Standard Port

2” Female Full Port

150 psi @ 70° F

125 psi @ 70° F

1 1/2”

2”

4 Bolt Series

6 Bolt Series

PART # DESCRIPTION MAXIMUM PSI

OPENING THRU BALL

V 200 FP

V 300

V 300 FP

2” Full Port

3” Standard Port

3” Full Port

150 psi @ 70° F

100 psi @ 70° F

2”

2 1/2”

3”

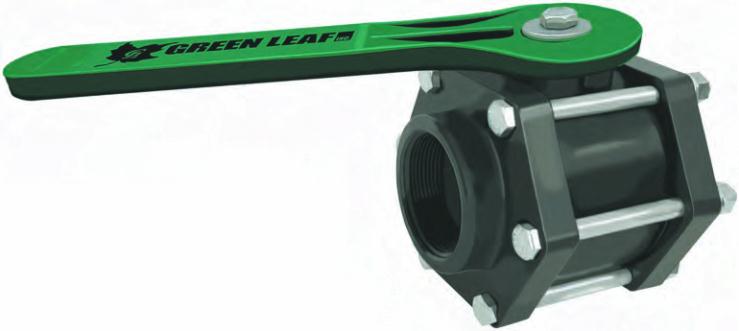

Six Bolt Valves
