20

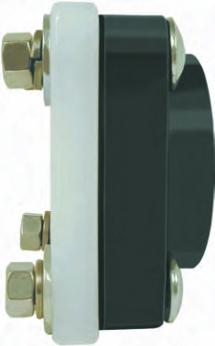

Outlet Flange (OF)
For use when access to inside of tank is available
Fits TankWall thickness from 1/4” - 1/2”
• Polypropylene Flanges
• Stainless Steel bolts, nuts & washers
• EPDM Gaskets
Sizes: 1-1/4”, 1-1/2”, 2” Standard Port, 2” Full Port
Inside Bolt Seal

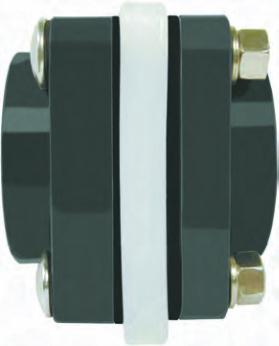

Double Seal Flange (DS)
Additional Flange Hardware
Nuts are tightened from outside of tank
Fits TankWall thickness from 1/4” - 1/2”
• Polypropylene Flanges
• Stainless Steel bolts, nuts & washers
• EPDM Gaskets
Sizes: 1-1/4”, 1-1/2”, 2” Standard Port, 2” Full Port
®
PART # DESCRIPTION
PART # QTY. DESCRIPTION
OF 125
OF 150
OF 200
OF 200 FP
1 1/4” Full Port
1 1/2” Full Port
2” Standard Port
2” Full Port
PART # INLET OUTLETx
DS 125
DS 150
DS 200
DS 200 FP
*SP = 1 1/2” Port
2” SP*
2” SP*
2” SP*
2” Full Port
1 1/4” Full Port
1 1/2” Full Port
2” Standard Port
2” Full Port
PG 1000
BG 1000
OF 1000
OF 1001
DS 1000
F 20019
F 20018
Port Gasket for Flange Fittings (EPDM)
Bolt Gasket for Flange Fittings (EPDM)
3/8” S.S. Bolt for OF Flange
3/8” S.S. FlatWasher for OF Flange
3/8” S.S. Bolt for DS Flange
3/8” S.S. Nut
3/8” S.S. LockWasher
ea.
pk of 4
ea.
ea.
ea.
ea.
ea.
PORT GASKET
PORT GASKET PORT GASKET
T
A
N
K
W
A
L
L
T
A
N
K
W
A
L
L
BOLT GASKET
BOLT GASKET
