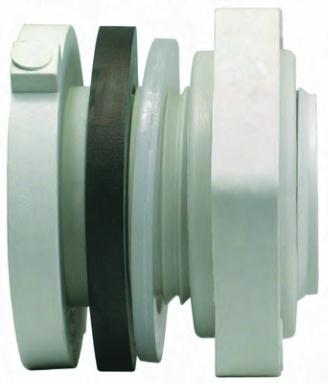

Bulkhead Fitting
External Thread and nut are left hand threads.
Internal Thread is FPT.
For use with tanks having a wall thickness of 1/16” to 1/2”.
Material:
• Body and Nut are either Nylon (N) or Polypropylene (P)
• Friction washer is Polyethylene
• Sealing washer is either Buna (B) or EPDM (E).
Nylon, Buna and Polyethylene used in manufacturing are FDA approved grade.

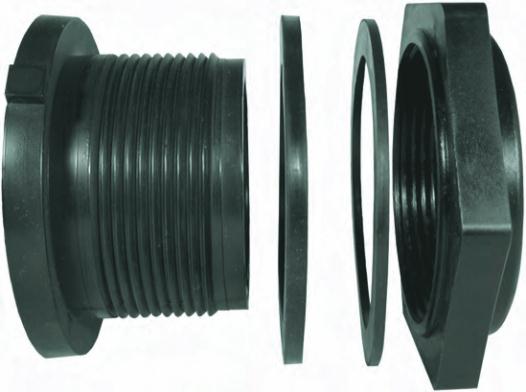

NUT
FRICTION WASHER
SEALING WASHER
(BUNA or EPDM)
BODY
TF 12 N-B
TF 12 N-E
TF 34 N-B
TF 34 N-E
TF 12 P-B
TF 12 P-E
TF 34 P-B
TF 34 P-E
TF 100 P-E
TF 125 P-E
TF 150 P-E
TF 200 P-E
TF 300 P-E
TF 400 P-E
BUNA
EPDM
BUNA
EPDM
EPDM
EPDM
EPDM
EPDM
EPDM
EPDM
1/2” FPT
1/2” FPT
3/4” FPT
3/4” FPT
1” FPT
1 1/4” FPT
1 1/2” FPT
2” FPT
3” FPT
4” FPT
NYLON
PART # THREAD
1 1/2”
1 1/2”
1 1/2”
1 1/2”
2 3/8”
2 3/8”
3”
3 1/8”
4 1/2”
5 3/4”
HOLE SIZE WASHER
POLYPROPYLENE
INTERNAL SEALING
