15 P.O. BOX 88 • 11144 TONEY ROAD • FONTANET, IN 47851 • PHONE: 800-654-9808 • FAX: 812-877-4278
Dry Poppet Couplings
dry disconnects
Male & Female sold separately.

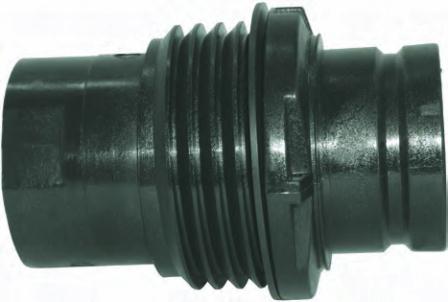

Male Adapter Dry Poppet — QD 100 M Female Coupling Dry Poppet — QD 100 F
pull back
to disconnect!

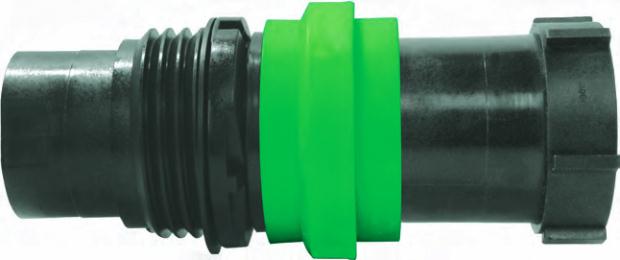

Male Adapter & Female Coupler shown coupled together.
Male Adapter & Female Coupler sold separately as shown below.
Features:
• Lightweight.
• Minimal fluid spillage.
• Easy to use.
• Economical.
• Reduces risk of exposure.
•Wide range of chemical resistance.
• Maximum operating pressure 70 P.S.I. @ 70°F.
• Maximum operating temperature 150°F.
• 30 GPM maximum flow.
• Precision molded in polypropylene.
• 1” Female NPT threads.
Applications:
• Agriculture
• Industrial
• Pharmaceutical
• Chemical processing
QD 100 F Female Dry Poppet Coupler, 1” Female NPTThreads FKM (viton type) Seals
QD 100 M Male Dry Poppet Adapter, 1” Female NPTThreads FKM (viton type) Seals
PART # DESCRIPTION
Available with 1” Female NPT Threads
