PATENT # 6,089,619
*Prices Subject To Change Without Notice • EMAIL: sales@grnleafinc.com • WEBSITE: http://www.grnleafinc.com
A
M
L
E
V
E
R
C
O
U
P
L
I
N
G
S
10
Specifications:
—— 1/2” through 2” maximum operating pressure 125 psi @ 70° F.
—— 3” and 4” maximum operating pressure 90 psi @ 70° F.
—— EPDM Gaskets
—— 1/2” series couplings interchange with 3/4” size
couplings. Coupling ends are 3/4” size.
—— 1-1/4” series couplings interchange with 1” size
couplings. Coupling ends are 1” size.
Green Leaf® , Inc. has brought exciting innovations to a
product that has existed for years without change.
These innovations have prepared this product for use in
the 21st century while maintaining interchangability
with other designs.
Some features include:
ENHANCED SAFETY-
Exclusive Cam Lever Locking Mechanism helps to
reduce the possibility of unintentionally opening the
cam levers, which could result in personal injury
and costly spills.
SMOOTH SEALING SURFACE-
Parting lines have been removed from the sealing
area of the male couplings, as illustrated below,
this reduces the possibility of leaks and wear
to the rubber seal.
EXPANDED PRODUCT APPLICATION-
By extending the nipple length of the “B” series this
coupling can now be used in applications which would
normally require an additional fitting to cam properly.

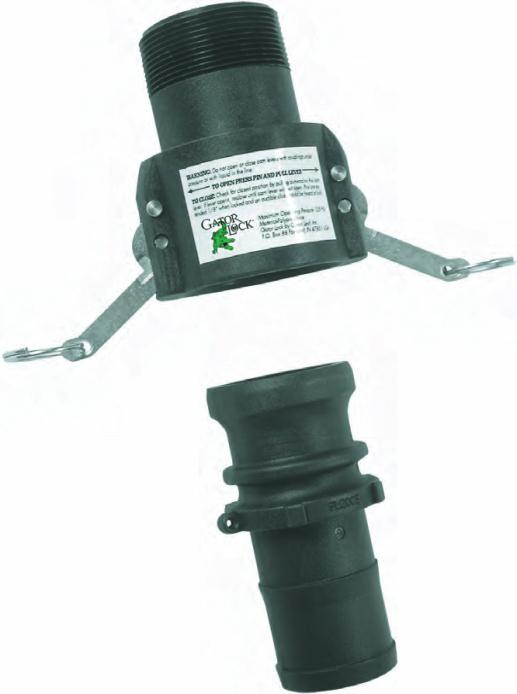

These improvements and many others have been made to the Gator Lock® cam lever
couplings which allows Green Leaf® , Inc. to offer you a significantly improved product
at a price that is competitive to products without these improvements
Male Adapter/ 1/2”- Female Thread
Male Adapter/ 3/4”- Female Thread
Male Adapter/ 1”- Female Thread
Male Adapter/ 1 1/4”- Female Thread
Male Adapter/ 1 1/2”- Female Thread
Male Adapter/ 1 1/4”- Female Thread
Male Adapter/ 2”- Female Thread
Male Adapter/ 3”- Female Thread
Male Adapter/ 4”- Female Thread
SIZE & DESCRIPTION
A SERIES
PART #
GLP 050 A
GLP 075 A
GLP 100 A
GLP 125 A
GLP 150 A
GLP 150125 A
GLP 200 A
GLP 300 A
GLP 400 A SERIES “A”
