8

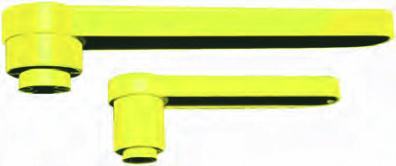

Optional Lever Handle (True Union)
PART # DESCRIPTION
TU 25 Lever handle for Small Valve (1/2” thru 1”)
TU 26 Lever handle for Large Valve (1 1/4” thru 2”)
Valve Repair Kit (True Union)
PART # DESCRIPTION
TUES 9 - EPDM “O” Rings for 1/2” thru 1”
TUEL 9 - EPDM “O” Rings for 1 1/4” thru 2”
* For Viton® or Buna “O” Rings — contact the sales dept.
Small = 1/2”, 3/4”, 1”
Large = 1 1/4”, 1 1/2”, 2”

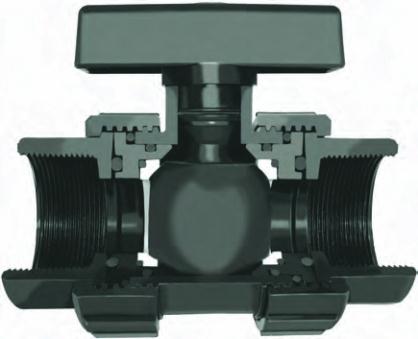

Individual Parts (HM Quick Shut Off Valve)
REF # DESCRIPTION
1
2
3
4
5
6
7
8
9
Individual Parts (True Union)
PART # DESCRIPTION & SIZE
TU 01
TU 02
TU 03
TU 04
TU 05
TU 06
TU 07
TU 08
TU 09
TU 10
TU 11
TU 12
TU 13
TU 14
TU 15
TU 16
TU 17
TU 18
TU 19
TU 20
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
13 14
15 16
9 10
1 2
3 4
5 6
7 8
11 12 17 18 19 20
End Cap
“O” Ring End Cap
“O” Ring Ball
Ball
“O” Ring Ball
Body
Screw
Handle
“O” Ring Stem
End Nut - Small (for 1/2” thru 1”)
End Nut - Large (for 1 1/4” thru 2”)
Thread Adapter - 1/2”
Thread Adapter - 3/4”
Thread Adapter - 1”
Thread Adapter - 1 1/4”
Thread Adapter - 1 1/2”
Thread Adapter - 2”
Seat Holder - Small (for 1/2” thru 1”)
Seat Holder - Large (for 1 1/4” thru 2”)
PTFE filled PE Seats - Small (for 1/2” thru 1”)
PTFE filled PE Seats - Large (for 1 1/4” thru 2”)
Screw - Small (for 1/2” thru 1”)
Screw - Large (for 1 1/4” thru 2”)
Tee Handle - Small (for 1/2” thru 1”)
Tee Handle - Large (for 1 1/4” thru 2”)
Body - Small (for 1/2” thru 1”)
Body - Large (for 1 1/4” thru 2”)
Small Ball - Small (for 1/2” thru 1”)
Large Ball - Large (for 1 1/4” thru 2”)
8
7
9
6 5 4 3 2 1
