P O W E R T R A N S M I S S I O N P R O D U C T S
V - B E L T
63
V - B E L T
2 0 1 1
HY- T
®
P
l u s
( C
l a s s i c a l
)

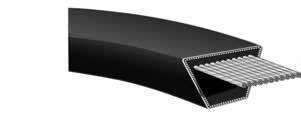

Part No: B75
B
0.66˝ Top Width – Classical Profile
75
Approximate 75˝ Inside Length
L
e s s
E
l o n g at i o n
I
s
t h e
K
e y
t o
P
e r f o r ma n c e
Whether you’re talking about rubber belts or metal chains, most
materials will elongate when put to use. The secret to reliable
performance isn’t to eliminate elongation, but to control it so that
it is minimal, predictable, and uniform. To achieve these criteria,
we developed the Vytacord tensile member.
Vytacord provides the high-strength, high-horsepower rating
capacity needed to effectively transmit today’s drive power. It’s
even tough enough to tolerate slight sheave misalignment that
would quickly destroy ordinary belts.
The Vytacord tensile member provides dimensional stability. As a
result, each belt of a given size will maintain its length consistency,
no matter when or where it was produced.
The exceptional dimensional stability properties of HY-T Plus
eliminates matching problems, improves performance, and
increases service life.
I
m p r ov e d
M
at e r i a l s
A
r e
t h e
K
e y
t o
t h e
D
u r a b i l i t y
&
V
e r s at i l i t y
o f
HY- T P
l u s
The vast improvements in all components of HY-T Plus
construction complement the quality of the Vytacord tensile
member.
Our engineered heat- and oil-resistant rubber compound, is used
in both the cushion and insulation sections of HY-T Plus. Belt
construction provides the flexibility on small pulleys. As a result
the belt is able to serve a dual purpose for both classical and FHP,
while offering more versatility than any other classical belt.
The HY-T Plus’ envelope construction assures optimum warp and
fill thread angle, providing belt flexibility. In addition, the fabric is
treated with Goodyear Engineered Products exclusive engineered
rubber compound for long wear and resistance to heat, oil, and
other environmental hazards.The envelope also assures that the belt
dissipates static electricity, as specified in RMA bulletin IP3-3.
The cushion is also crush-resistant and cool running to maintain
its shape, fit, and strength longer. And with the longer service life
achieved by HY-T Plus belts, replacement of belts is less frequent.
Overall, belt costs are reduced, downtime is minimized, and
equipment productivity is maintained.
L
e s s
I
n v e n t o ry
R
e qu i r e d
The HY-T Plus can be used in FHP applications. Conversely, rarely
do FHP belts perform in HY-T
Plus (classical) applications.
The result is a reduced inventory that equates to dollars taken off
the shelves and into your pockets.
A
p p l i c at i o n s
Designed for operating at high speeds over small
diameter pulleys and short center distances. Also for
use in multiple V-belt drives where high shock load
and heavy-duty loads are encountered.
K
e y
F
e at u r e s
& B
e n e f i t s
• Universal classical profile.
• High-strength Vytacord
®
tensile members.
• Engineered rubber-impregnated envelope.
• Engineered rubber compound cushion
and insulation.
• Dual branded (Classical and FHP part numbers).
• Oil, heat, ozone, and abrasion resistant.
• Matchmaker to eliminate mismatch.
• Static conductive.*
*Drive conditions and service variables in combination with time in operation can result in a loss of static conductivity. It is recommended that a conductivity check
be added to drive preventive maintenance programs where belt static conductivity is a requirement.
To learn more visit www.goodyearep.com/ptp.
