MIL-DTL-29210E
steam hose
Updates to new “E” specifcation
Product Specifcations
APPLICATION:
CONSTRUCTION
TUBE:
COVER:
REINFORCEMENT:
TEMPERATURE:
PACKAGING:
BRANDING:
COUPLINGS:
NON-STOCK/SIZES:
ORDER CODES:
Hose assembly for military applications (such as Navy shipyard use) in temporary services from docks
or barges to ships. First Article-approved hose meeting the requirements of MIL-DTL-29210 rev. E.
This specifcation covers metal-lined, wire-reinforced, rubber hose assemblies for conveyance of
saturated steam.
Revision E update (key changes):
• Ozone and steam tests as part of conformance testing are required for 1st Article in rev. E
• Part or identifying number (PIN) is much more specifc
• The branding requirements have been corrected to brand as MIL-DTL-29210
instead of MIL-PRF-29210C.
EPDM
Black wrapped fnish EPDM
2 wire braids
0º to 406ºF (-18ºC to 208ºC)
25’ or 50’ cut lengths

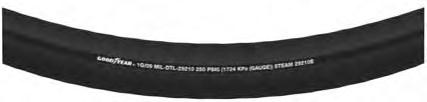

Goodyear® (Quarter/Year Date Code) MIL-DTL-29210 250 PSIG (1724 KPA {Gauge}) steam 29210E
End fittings and special stem design per MIL-DTL-29210E for use with stainless-steel metal liner.
Stainless-steel metal liner per MIL-DTL-29210E
¾”, 1”, 1¼”*, 1½”, 2” (*in development)
539-670
ID OD WP WEIGHT
in. mm. in. mm. psi Mpa lb./ft. kg./m.
3/4 19.05 1.315 33.40 250 1.723 0.61 0.91
1 25.4 1.61 40.89 250 1.723 0.82 1.22
11/2 38.1 2.12 53.85 250 1.723 1.22 1.82
2 50.8 2.71 68.83 250 1.723 1.80 2.68
MIL-dtl-29210e STEAM HOSE
