ELA-flex SD
™
Selection graphs

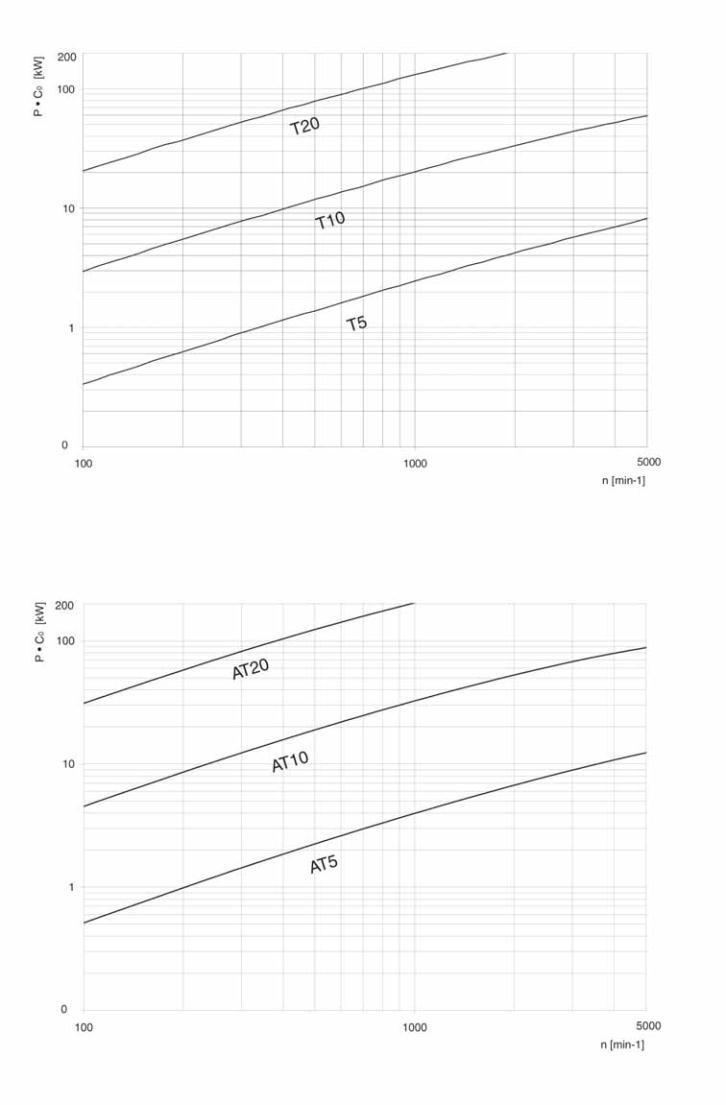

The selection graphs enable to select the most suitable timing belt pitch, for each belt profile, for the power to be transmitted. The
rpm on the horizontal axis refers to the small pulley. The corrected power (safety factor x nominal power) is read on the vertical axis.
