ELATECH
®
M
and V
F4
Belt width
b
[mm]
Allowable
tensile load
Type M
F Tzul
[N]
Allowable
tensile load
Type V
FTzul
[N]
Breaking
load
Type M
F Br
[N]
Specific
spring
rate
Cspez
[N]
Weight
[kg/m]
Technical data
Belt characteristics
• Polyurethane flat belt with steel tension cords
• It is mainly used in lifting application where there is no
need of synchronization
• Allows the use of small diameter pulleys
• Width tolerance: ±0,5 [mm]
• Thickness tolerance: ±0,2 [mm]
Other widths are available on request.
25
50
75
100
4200
8400
12600
16800
2100000
4200000
6300000
8400000
33000
66000
99000
132000
8400
16800
25200
33600
0,20
0,40
0,60
0,80

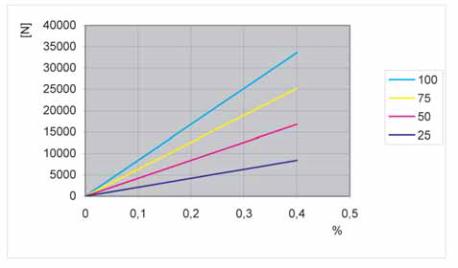

Load / Elongation [ % ]
Minimum
pulley
diameter
Drive without
reverse bending
[mm]
Drive with
reverse bending
[mm]
120 150
4
